30-03279
ActiveTensility International Corp
CABLE 2COND 24AWG BLACK/WHITE
30-03279
ActiveTensility International Corp
CABLE 2COND 24AWG BLACK/WHITE
Description
General part information
30-03279

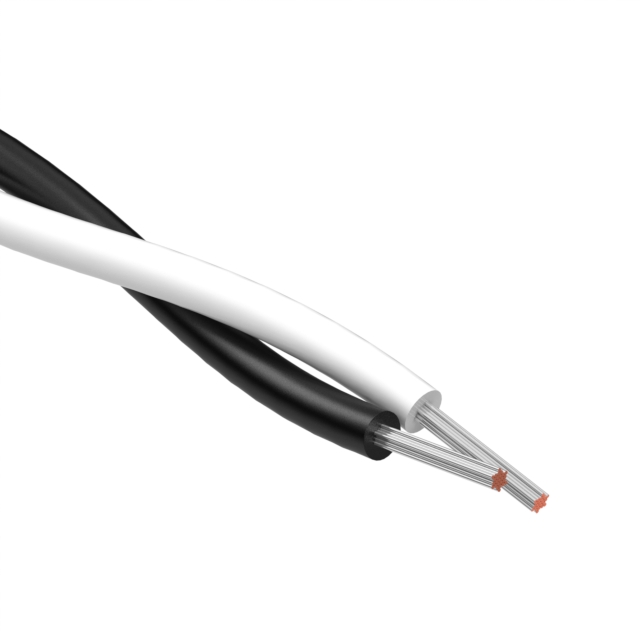

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black, White 24 AWG 502.0' (153.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-03279 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 26 |
| Conductor Strand Diameter | 0.0039 in |
| Jacket Color | White, Black |
| Length | Enter Number of Meters in Order Quantity |
| Length | 502 ft |
| Number of Conductors | 2 |
| Number of Conductors - Pair | 1 |
| Operating Temperature | 80 °C |
| Ratings | UL Style 1640, Style, UL, 1640 |
| Spool Size | 502 ft |
| Usage | Communication, Control |
| Voltage | 30 V |
| Wire Gauge | 24 AWG |
