289-618
ActiveWAGO Corporation

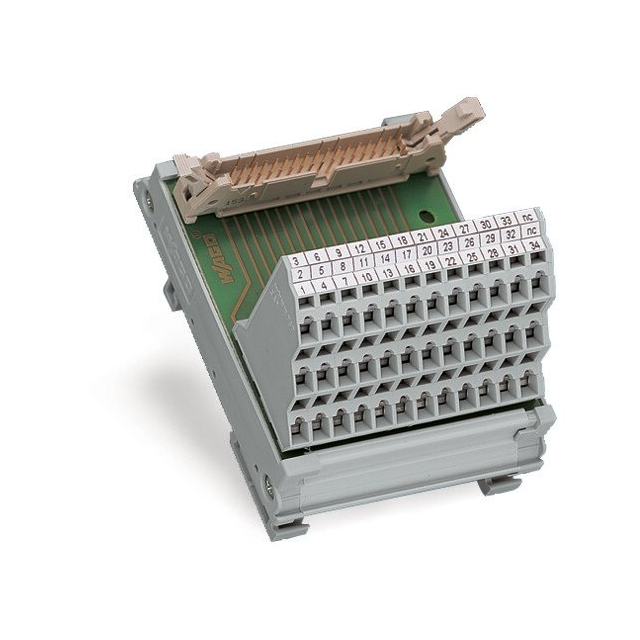

INTERFACE MODULE DIN 41651
289-618
ActiveWAGO Corporation
INTERFACE MODULE DIN 41651
Description
General part information
289-618
50 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male - DIN 41651 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 289-618 |
|---|---|
| Control Side Cable Retainer Type | Latches |
| Control Side Connection Gender | Male |
| Control Side Connection Shape | Rectangular |
| Control Side Connection Standard | DIN 41651 |
| Current Rating (Per Contact) | 1 A |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Positions / Poles | 50 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 125 VAC |
| Width | 3.465 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
