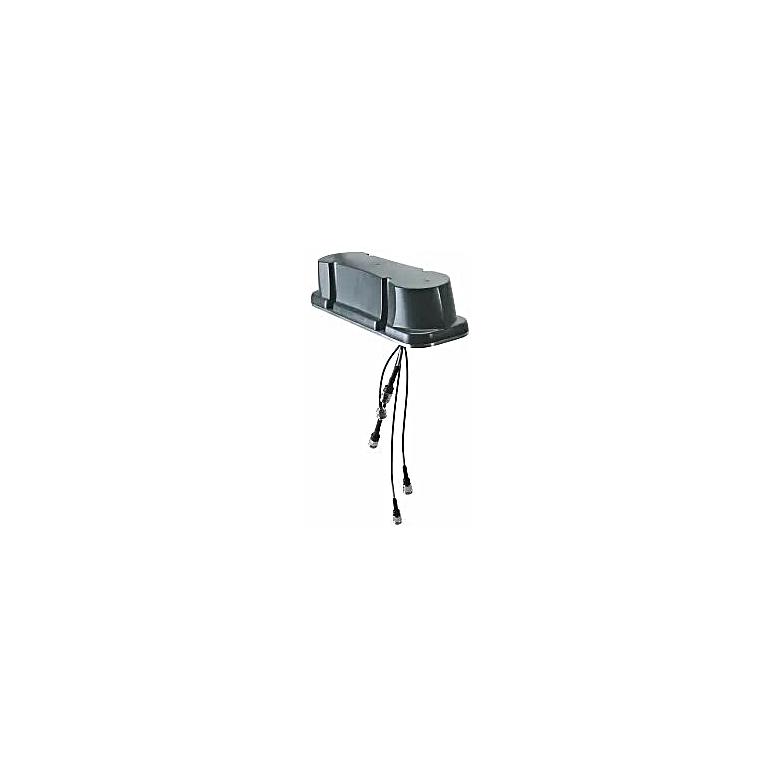

1399.99.0147
ActiveHuber+Suhner, Inc.
1399.99.0147
1399.99.0147
ActiveHuber+Suhner, Inc.
1399.99.0147
Description
General part information
1399.99.0147
788.5MHz, 1.5845GHz, 2.025GHz, 2.45GHz, 3GHz, 4.1GHz, 6.0125GHz General Purpose Module RF Antenna 617MHz ~ 960MHz, 1.35MHz ~ 2.7GHz, 1.559MHz ~ 1.610MHz, 2.4MHz ~ 2.5MHz, 2.7MHz ~ 3.3MHz, 3.3MHz ~ 4.9GHz 5dBi, 7dBi, 6dBi, 5.5dBi, 5.5dBi, 7dBi, 6.5dBi N Type Female (4), TNC Male Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1399.99.0147 |
|---|---|
| Antenna Type | Module |
| Applications | General Purpose |
| Features | 360mm, Cable |
| Frequency (Center/Band) | 788.5MHz, 1.5845GHz, 6.0125GHz, 4.1GHz, 2.45GHz, 2.025GHz, 3GHz |
| Frequency (Center/Band) - 1 | 788.5 MHz |
| Frequency (Center/Band) - 2 | 1.5845 GHz |
| Frequency (Center/Band) - 3 | 2.025 GHz |
| Frequency (Center/Band) - 4 | 2.45 GHz |
| Frequency (Center/Band) - 5 | 3 GHz |
| Frequency (Center/Band) - 6 | 4.1 GHz |
| Frequency (Center/Band) - 7 | 6.0125 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.35 MHz |
| Frequency Range (Band 3) Maximum | 1.61 MHz |
| Frequency Range (Band 3) Minimum | 1.559 MHz |
| Frequency Range (Band 4) Maximum | 2.5 MHz |
| Frequency Range (Band 4) Minimum | 2.4 MHz |
| Frequency Range (Band 5) Maximum | 3.3 MHz |
| Frequency Range (Band 5) Minimum | 2.7 MHz |
| Frequency Range (Band 6) Maximum | 4.9 GHz |
| Frequency Range (Band 6) Minimum | 3.3 MHz |
| Gain | 6 dBi, 5.5 dBi, 7 dBi, 6.5 dBi, 5 dBi |
| Height (Max) | 3.213 in |
| Ingress Protection | IP67, IP69 |
| Mounting Type | Bracket Mount |
| Number of Bands | 8 |
| Power - Max | 80 W |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Termination Count | 4 |
| Termination Type | TNC Male, N Type Female |
| VSWR | 1.7, 2.3, 1.8 |
