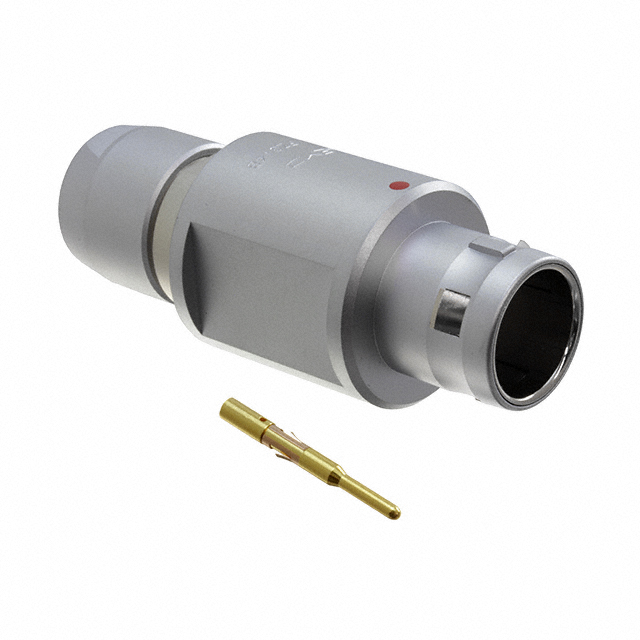

FZG.4B.310.CYCD12

Active

LEMO

CONN PLUG MALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 10POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FZG.4B.310.CYCD12

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [diameter]	0.472 in
Cable Opening [Max] [diameter]	12 mm
Cable Opening [Min] [diameter]	0.417 in
Cable Opening [Min] [diameter]	10.6 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	17 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	310
Shielding	Shielded
Termination	Crimp

CONN PLUG MALE 10POS GOLD CRIMP

Part	Fastening Type	Number of Positions	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Ingress Protection	Termination	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Size - Insert	Color	Material Flammability Rating	Mounting Type	Contact Material	Orientation	Shell Material	Shielding	Connector Type	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Finish - Mating
LEMO FZG.4B.310.CYCD12	Push-Pull	10	Metal	1 µm	39.4 µin	Chrome	IP50	Crimp	Polyetheretherketone (PEEK)	-55 °C	250 °C	17 A	310	Silver	UL94 V-0	Free Hanging (In-Line)	Brass	G	Brass	Shielded	Male Pins, Plug	Brass, Chrome	0.472 in	0.417 in	10.6 mm	12 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 264.81

General part information

10 Position Circular Connector Plug, Male Pins Crimp
