25006 BK199
ActiveALPHA WIRE

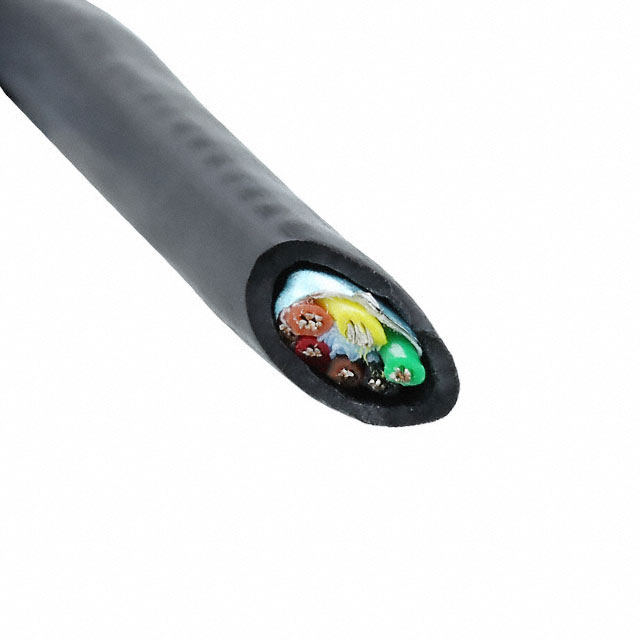

CABLE 6COND 22AWG BLACK FEET
Deep-Dive with AI
Search across all available documentation for this part.
25006 BK199
ActiveALPHA WIRE
CABLE 6COND 22AWG BLACK FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25006 BK199 | 25006 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Rip Cord, Biological Compatibility | Rip Cord, Biological Compatibility |
| Jacket (Insulation) Diameter [diameter] | 0.219 in | 0.219 in |
| Jacket (Insulation) Diameter [diameter] | 5.56 mm | 5.56 mm |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Black, Slate |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length | - | 30.5 m |
| Length | - | 100 ft |
| Number of Conductors | 6 | 6 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Spool Size | 1000 ft | 1000 ft |
| Spool Size | 304.8 m | 304.8 m |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
25006 Series
CABLE 6COND 22AWG BLACK FEET
| Part | Number of Conductors | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Wire Gauge | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Cable Type | Length | Ratings | Jacket (Insulation) Material | Spool Size | Spool Size | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25006 BK199 | 6 | Biological Compatibility, Rip Cord | 0.219 in | 5.56 mm | 300 V | 22 AWG | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | Copper, Tinned | -30 ░C | 90 °C | Black | Multi-Conductor | Enter Number of Feet in Order Quantity | ISO 10993, UL Style 20668 | Polyurethane (PU) | 1000 ft | 304.8 m | ||||
ALPHA WIRE 25006 SL199 | 6 | Biological Compatibility, Rip Cord | 0.219 in | 5.56 mm | 300 V | 22 AWG | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | Copper, Tinned | -30 ░C | 90 °C | Slate | Multi-Conductor | ISO 10993, UL Style 20668 | Polyurethane (PU) | 1000 ft | 304.8 m | |||||
ALPHA WIRE 25006 BK005 | 6 | Biological Compatibility, Rip Cord | 0.219 in | 5.56 mm | 300 V | 22 AWG | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | Copper, Tinned | -30 ░C | 90 °C | Black | Multi-Conductor | ISO 10993, UL Style 20668 | Polyurethane (PU) | 30.5 m | 100 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 6.66 | |
| 3 | $ 6.14 | |||
| 5 | $ 5.92 | |||
| 7 | $ 5.80 | |||
| 10 | $ 5.64 | |||
| 25 | $ 5.43 | |||
Description
General part information
25006 Series
6 Conductor Multi-Conductor Cable Black 22 AWG Enter Number of Feet in Order Quantity
