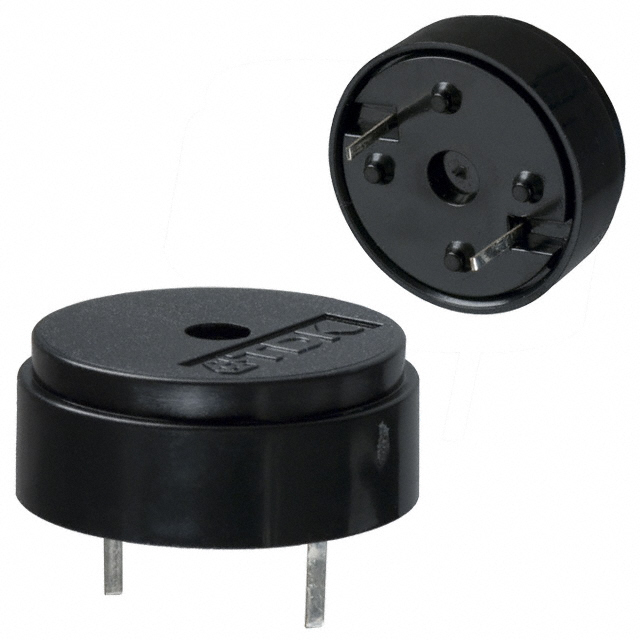

PS1740P02
ObsoleteTDK Corporation
BUZZER PIEZO 3V 17MM TH
PS1740P02
ObsoleteTDK Corporation
BUZZER PIEZO 3V 17MM TH
Description
General part information
PS1740P02
Buzzers Transducer, Externally Driven Piezo 3 V 4kHz 75dB @ 3V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | PS1740P02 |
|---|---|
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) | 0.307 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.669 in |
| Sound Pressure Level (SPL) | 75 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 3 VDC |
| Voltage Range (Max) | 30 VDC |
| Voltage Range (Min) | 0 V |
