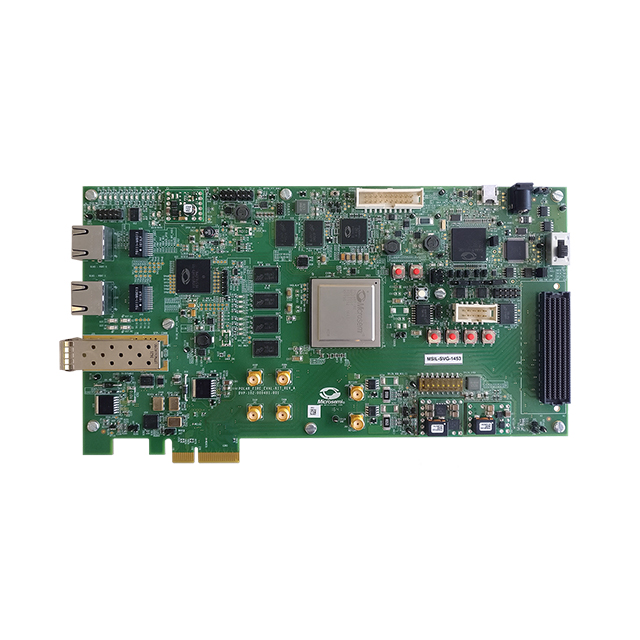

Specification	MPF300-EVAL-KIT-ES

Contents	Power Supply, Board, Accessories, Cable
Interconnect System	FMC
Platform	PolarFire SoC FPGA PCIe Card
Type	FPGA + MCU/MPU SoC
Utilized IC / Part	MPF300

MPF300 Series

Lowest Power, Cost-Optimized, Mid-Range FPGAs

Part	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Total RAM Bits	Number of I/O	Number of Logic Elements/Cells	Package Width	Package Name	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Interconnect System	Suggested Programming Environment	For Use With/Related Products	Utilized IC / Part	Type	Contents	Platform
Microchip Technology MPF300TL-FCG784E	784-BBGA FCBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	388	300000	29 mm	784-FCBGA	29 mm	100 °C	0 °C
Microchip Technology MPF300TL-FCSG536I	536-LFBGA CSPBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	300	300000	16 mm	536-CSPBGA	16 mm	100 °C	-40 °C
Microchip Technology MPF300TS-1FCG484I	484-BBGA FCBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	244	300000	23 mm	484-FCBGA	23 mm	100 °C	-40 °C
Microchip Technology MPF300TL-FCSG536E	536-LFBGA CSPBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	300	300000	16 mm	536-CSPBGA	16 mm	100 °C	0 °C

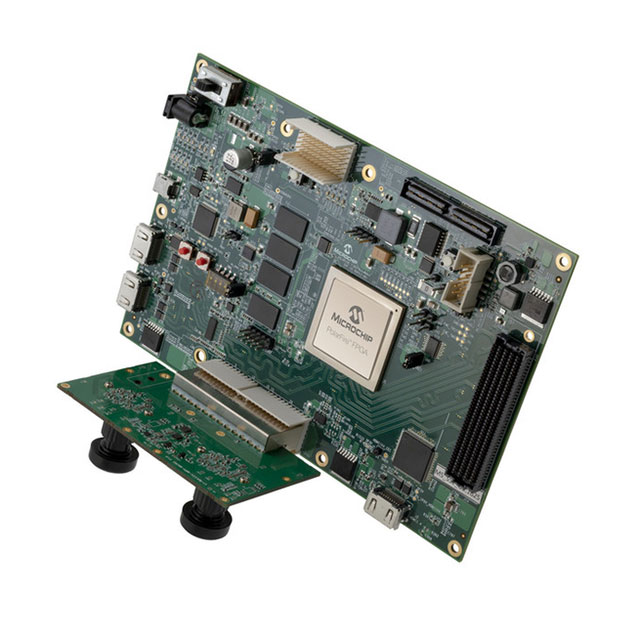

Microchip Technology MPF300-VIDEO-KIT													FMC mikroBUS Click	Libero SoC	MPF300	MPF300	FPGA + MCU/MPU SoC	Accessories Board Cable Power Supply	PolarFire SoC FPGA Video
Microchip Technology MPF300T-FCG1152E	1152-BBGA FCBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	512	300000	35 mm	1152-FCBGA	35 mm	100 °C	0 °C
Microchip Technology MPF300T-1FCSG536E	536-LFBGA CSPBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	300	300000	16 mm	536-CSPBGA	16 mm	100 °C	0 °C
Microchip Technology MPF300T-1FCG1152I	1152-BBGA FCBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	512	300000	35 mm	1152-FCBGA	35 mm	100 °C	-40 °C
Microchip Technology MPF300T-1FCG484E	484-BBGA FCBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	244	300000	23 mm	484-FCBGA	23 mm	100 °C	0 °C
Microchip Technology MPF300T-1FCG1152E	1152-BBGA FCBGA	0.97 V	1.08 V	Surface Mount	21094400 bits	512	300000	35 mm	1152-FCBGA	35 mm	100 °C	0 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
