BMS1511F-11C-08H3.5W018
ActiveBeStar Technologies, Inc.

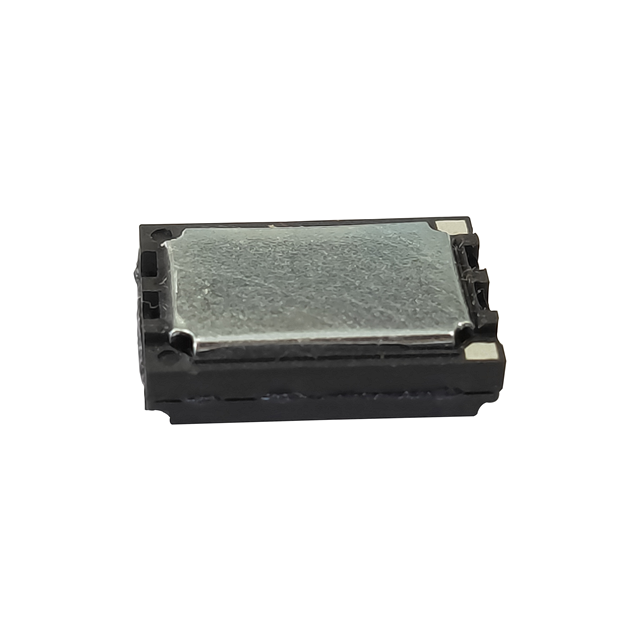

SPEAKER 8OHM 500MW TOP PORT 82DB
BMS1511F-11C-08H3.5W018
ActiveBeStar Technologies, Inc.
SPEAKER 8OHM 500MW TOP PORT 82DB
Description
General part information
BMS1511F-11C-08H3.5W018
8 Ohms General Purpose Speaker 500 mW 500 Hz ~ 20 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | BMS1511F-11C-08H3.5W018 |
|---|---|
| Efficiency - dBA | 82 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 100 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 500 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 500 Hz |
| Height - Seated (Max) | 0.138 in |
| Impedance | 8 Ohm |
| Material - Cone | Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 1 VA |
| Power - Rated | 500 mW |
| Shape | Rectangular |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.433 in |
| Technology | Magnetic |
| Termination | Connector |
| Type | General Purpose |
