30-02755
ActiveTensility International Corp
CBL 8CON 28AWG GRY BIO
30-02755
ActiveTensility International Corp
CBL 8CON 28AWG GRY BIO
Description
General part information
30-02755

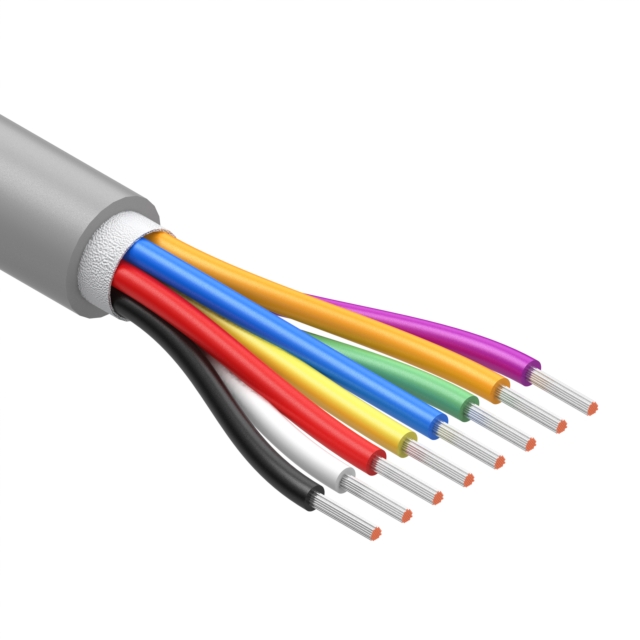

8 Conductor Multi-Conductor Cable Gray 28 AWG 502.0' (153.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02755 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 40 |
| Conductor Strand Diameter | 0.002 in |
| Features | Biological Compatibility |
| Jacket (Insulation) Diameter | 0.138 in |
| Jacket (Insulation) Material | Thermoplastic Polyurethane (TPU) |
| Jacket (Insulation) Thickness | 0.0197 in |
| Jacket Color | Gray |
| Length | 502 ft |
| Number of Conductors | 8 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | 10993, ISO |
| Voltage | 150 V |
| Wire Gauge | 28 AWG |
