PE70A1041S
ActivePasternack
0 TO 90 DB PUSH BUTTON STEP ATTE
PE70A1041S
ActivePasternack
0 TO 90 DB PUSH BUTTON STEP ATTE
Description
General part information
PE70A1041S

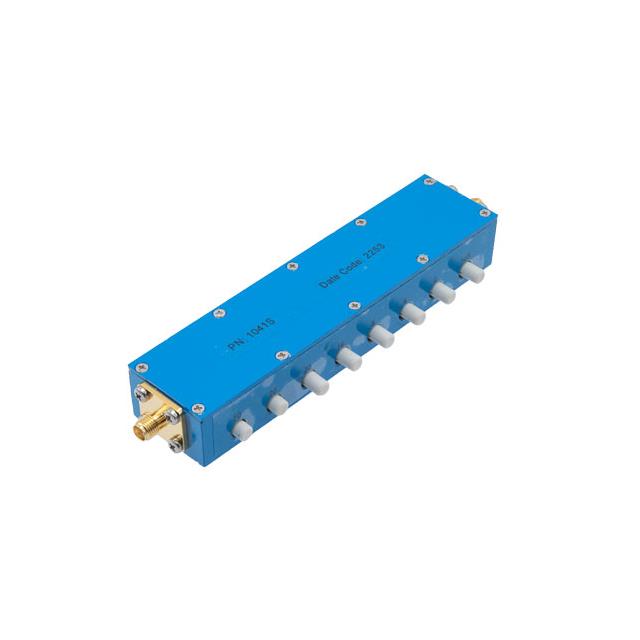

RF Attenuators 0dB ~ 90dB 0 Hz ~ 3 GHz 50 Ohms 2W SMA In-Line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE70A1041S |
|---|---|
| Attenuation Value (Max) | 90 dB |
| Attenuation Value (Min) | 0 dB |
| Frequency Range (Max) | 3 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Package / Case | SMA In-Line Module |
| Power (Watts) | 2 w |
