1-1355397-3
ActiveTE Connectivity AMP Connectors

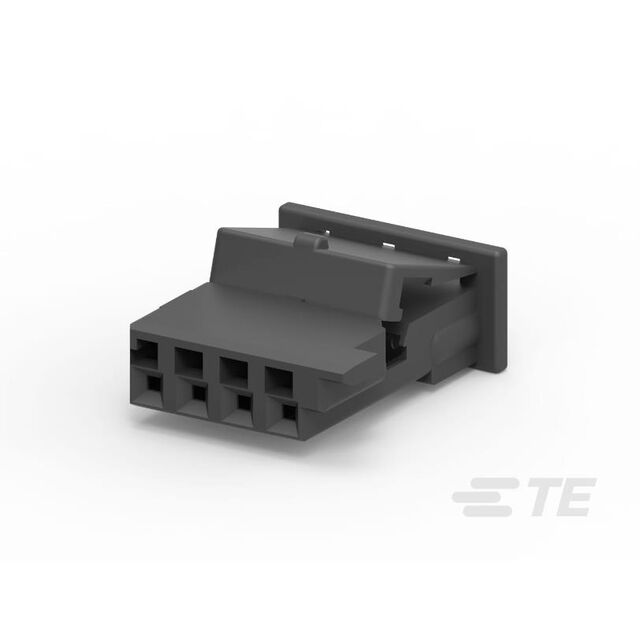

MQS BU-GEH 4P,SW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1355397-3
ActiveTE Connectivity AMP Connectors
MQS BU-GEH 4P,SW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1355397-3 | 1355397 Series |
|---|---|---|
| Color | Black | Black, Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
1355397 Series
MQS BU-GEH 4P,SW
| Part | Fastening Type | Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Color | Mounting Type | Number of Positions | Number of Rows | Connector Type | Insulation Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1355397-3 | Latch Lock | Female Socket | 2.54 mm | 0.1 in | -30 ░C | 105 ░C | Crimp | Black | Free Hanging (In-Line) | 4 | 1 | Receptacle | Polybutylene Terephthalate (PBT), Glass Filled | |
TE Connectivity AMP Connectors 2-1355397-3 | Latch Lock | Female Socket | 2.54 mm | 0.1 in | -30 ░C | 105 ░C | Crimp | Natural | Free Hanging (In-Line) | 4 | 1 | Receptacle | Polybutylene Terephthalate (PBT), Glass Filled | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.94 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.47 | |||
Description
General part information
1355397 Series
4 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
