T4144415051-000
ActiveTE Connectivity AMP Connectors

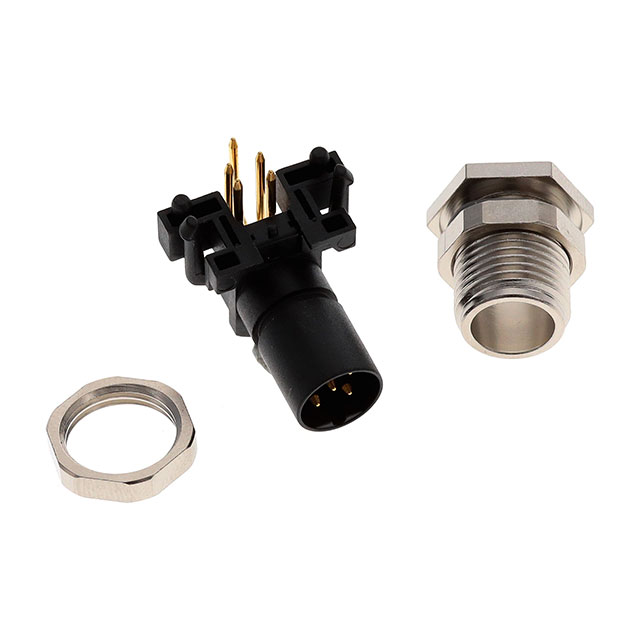

M12 RA M PNL REAR B 5P PCB STD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4144415051-000
ActiveTE Connectivity AMP Connectors
M12 RA M PNL REAR B 5P PCB STD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4144415051-000 | T41444 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | B | B |
| Primary Material | Metal | Metal |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-5 |
| Shielding | Unshielded | Shielded, Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 60 VDC | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.08 | |
| 10 | $ 13.79 | |||
| 30 | $ 13.42 | |||
| 80 | $ 12.91 | |||
T41444 Series
M12 RA M PNL REAR B 5P PCB SHLD
| Part | Contact Finish Thickness - Mating | Contact Finish - Mating | Shielding | Features | Shell Size - Insert | Shell Material | Ingress Protection | Insert Material | Applications | Connector Type | Primary Material | Termination | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Mounting Type | Current Rating (Amps) | Color | Voltage Rating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4144435051-000 | Flash | Gold | Shielded | Board Guide, Board Lock | M12-5 | Copper Alloy | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Industrial | Male Pins, Receptacle | Metal | Solder | Copper Alloy | 85 °C | -40 °C | B | Panel Mount, Right Angle, Through Hole | 4 A | Silver | 60 VDC | Bulkhead - Front Side Nut |
TE Connectivity AMP Connectors T4144415051-000 | Flash | Gold | Unshielded | Board Guide, Board Lock | M12-5 | Copper Alloy | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Industrial | Male Pins, Receptacle | Metal | Solder | Copper Alloy | 85 °C | -40 °C | B | Panel Mount, Right Angle, Through Hole | 4 A | Silver | 60 VDC | Bulkhead - Front Side Nut |
Description
General part information
T41444 Series
5 Position Circular Connector Receptacle, Male Pins Solder
