General part information

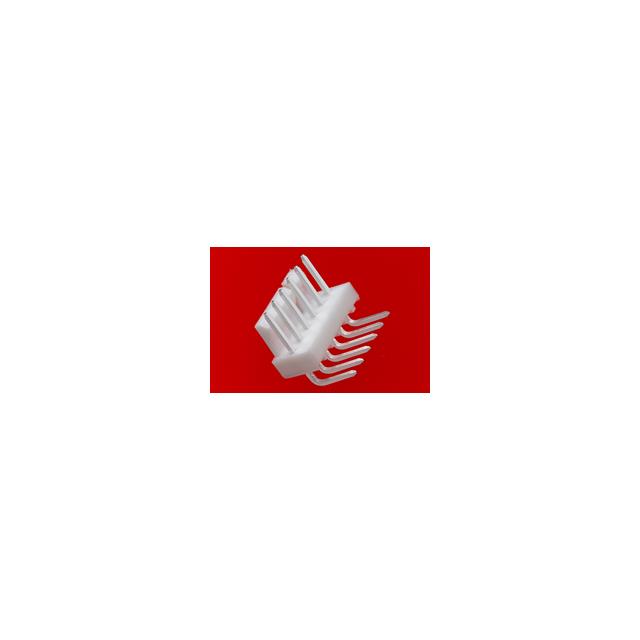

Connector Header position
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
3D models and CAD resources for this part
Technical documentation and resources
| Part | Mounting Type | Number of Positions | Style | Contact Finish - Mating | Number of Positions Loaded | Insulation Height | Fastening Type | Contact Length - Mating | Insulation Material | Connector Type | Termination | Insulation Color | Number of Rows | Contact Length - Post | Contact Type | Contact Shape | Shrouding | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Finish - Post | Pitch - Mating | Applications | Contact Finish Thickness - Post | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Right Angle Through Hole | 11 | Board Board or Cable | Tin | All | 0.13 in | Push-Pull | 0.369 in | Nylon Polyamide (PA) | Header | Solder | White | 1 | 0.124 in | Male Pin | Square | Unshrouded | 60 µin | UL94 V-0 | Tin | 0.1 in | Automotive General Purpose Medical Telecommunications | 60 Ąin | |
 Molex | Right Angle Through Hole | 12 | Board Cable/Wire | Tin | All | 0.248 in | Friction Lock | 0.295 in | Nylon Polyamide (PA) | Header | Solder | Natural | 1 | 0.134 in | Male Pin | Square | Shrouded - 1 Wall | 200 Ąin | UL94 V-0 | Tin | 0.098 in | Brass | ||
 Molex | Right Angle Through Hole | 14 | Board Cable/Wire | Tin | All | 0.248 in | Friction Lock | 0.295 in | Nylon Polyamide (PA) | Header | Solder | Natural | 1 | 0.134 in | Male Pin | Square | Shrouded - 1 Wall | 200 Ąin | UL94 V-0 | Tin | 0.098 in | Brass | ||
 Molex | Right Angle Through Hole | 13 | Board Board or Cable | Tin | All | 0.256 in | Friction Lock | 0.264 in | Nylon Polyamide (PA) | Header | Solder | White | 1 | 0.141 in | Male Pin | Square | Shrouded - 1 Wall | 100 µin | UL94 V-0 | Tin | 0.1 in | Automotive General Purpose Medical Telecommunications | 100 Ąin | Brass |
Molex | Right Angle Through Hole | 15 | Board Board or Cable | Tin | All | 0.13 in | Push-Pull | 0.369 in | Nylon Polyamide (PA) | Header | Solder | White | 1 | 0.124 in | Male Pin | Square | Unshrouded | 60 µin | UL94 V-0 | Tin | 0.1 in | Automotive General Purpose Medical Telecommunications | 60 Ąin | |
 Molex | Right Angle Through Hole | 9 | Board Board or Cable | Tin | All | 0.256 in | Friction Lock | 0.264 in | Nylon Polyamide (PA) | Header | Solder | White | 1 | 0.141 in | Male Pin | Square | Shrouded - 1 Wall | 100 µin | UL94 V-0 | Tin | 0.1 in | Automotive General Purpose Medical Telecommunications | 100 Ąin | Brass |
 Molex | Right Angle Through Hole | 21 | Board Board or Cable | Tin | All | 0.256 in | Friction Lock | 0.264 in | Nylon Polyamide (PA) | Header | Solder | White | 1 | 0.141 in | Male Pin | Square | Shrouded - 1 Wall | 100 in 100 µin | UL94 V-0 | Tin | 0.1 in | Automotive General Purpose Medical Telecommunications | 100 in | Brass |
 Molex | Right Angle Through Hole | 5 | Board Cable/Wire | Tin | All | 0.248 in | Friction Lock | 0.295 in | Nylon Polyamide (PA) | Header | Solder | Natural | 1 | 0.134 in | Male Pin | Square | Shrouded - 1 Wall | 200 Ąin | UL94 V-0 | Tin | 0.098 in | Brass | ||
 Molex | Right Angle Through Hole | 6 | Board Board or Cable | Tin | All | 0.228 in | Friction Lock | 0.264 in | Nylon 6/6 Polyamide (PA66) | Header | Solder | Natural | 1 | 0.15 in | Male Pin | Square | Shrouded - 1 Wall | 60 µin | UL94 V-0 | Tin | 0.1 in | Automotive General Purpose Medical Telecommunications | 60 Ąin | Brass |
 Molex | Right Angle Through Hole | 11 | Board Board or Cable | Tin | All | 0.228 in | Friction Lock | 0.264 in | Nylon 6/6 Polyamide (PA66) | Header | Solder | Natural | 1 | 0.15 in | Male Pin | Square | Shrouded - 1 Wall | 60 µin | UL94 V-0 | Tin | 0.1 in | Automotive General Purpose Medical Telecommunications | 60 Ąin | Brass |
