MS3122E20-41PX
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3122E20-41PX
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3122E20-41PX | MS3122E20 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle Housing, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 16 |
| Contact Type | - | Crimp |
| Current Rating (Amps) | 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Grade | Military | Military |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | 41 | 39 - 41 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | X | X, N, Z, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 20 |
| Shell Size - Insert | - | 16 |
| Shell Size - Insert [Max] | 41 | 39 - 41 |
| Shell Size - Insert [Min] | 20 | 20 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Male Pins, For Female Sockets |
| Voltage Rating | 600 VAC | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 106.52 | |
| 10 | $ 97.75 | |||
| 25 | $ 93.99 | |||
| 50 | $ 90.86 | |||
| 100 | $ 85.84 | |||
MS3122E20 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Ingress Protection | Shielding | Connector Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Qualification | Primary Material | Fastening Type | Contact Finish - Mating | Voltage Rating | Orientation | Applications | Insert Material | Shell Finish | Shell Material | Number of Positions | Grade | Contact Material | Color | Mounting Feature | Termination | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Size | Contact Type | Housing Color | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Type | Note | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3122E20-41PX | Environment Resistant | Unshielded | Male Pins, Receptacle | 20 | 41 | MIL-DTL-26482 Series I | Metal | Bayonet Lock | Gold | 600 VAC | X | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Olive Drab Chromate over Cadmium | Aluminum | 41 | Military | Copper Alloy | Olive Drab | Flange | Crimp | 7.5 A | -55 °C | 125 °C | |||||||||
Amphenol Industrial Operations MS3122E20-16PW | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E20-39SW | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E20-16PLC | Environment Resistant | Unshielded | Receptacle Housing | MIL-DTL-26482 Series I | Bayonet Lock | N | Neoprene | Chromate over Cadmium | Aluminum | Military | Flange | -55 °C | 125 °C | 16 | 16 | Crimp | Olive Drab | 20 | 16 | For Male Pins | Contacts Not Included | Circular | |||||||||||
Amphenol Industrial Operations MS3122E20-41S(LC) | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E20-41S | Environment Resistant | Unshielded | Receptacle, Female Sockets | 20 | 41 | MIL-DTL-26482 Series I | Metal | Bayonet Lock | Gold | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Olive Drab Chromate over Cadmium | Aluminum | 41 | Military | Copper Alloy | Olive Drab | Flange | Crimp | -55 °C | 125 °C | |||||||||||
Amphenol Industrial Operations MS3122E-20-41P | Environment Resistant | Unshielded | Male Pins, Receptacle | 20 | 41 | MIL-DTL-26482 Series I | Metal | Bayonet Lock | Gold | N | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Olive Drab Chromate over Cadmium | Aluminum | 41 | Military | Copper Alloy | Olive Drab | Flange | Crimp | -55 °C | 125 °C | |||||||||||
Amphenol Industrial Operations MS3122E20-41P(LC) | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E20-41PW | |||||||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3122E20-16PZ | Environment Resistant | Unshielded | Male Pins, Receptacle | MIL-DTL-26482 Series I | Metal | Bayonet Lock | Gold | Z | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Olive Drab Chromate over Cadmium | Aluminum | Military | Copper Alloy | Olive Drab | Flange | Crimp | -55 °C | 125 °C | 16 | 20 | 16 |
Description
General part information
MS3122E20 Series

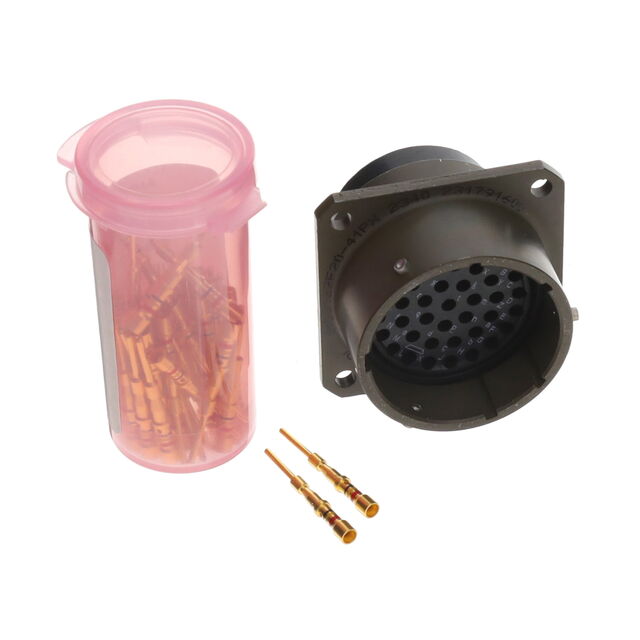

41 Position Circular Connector Receptacle, Male Pins Crimp
