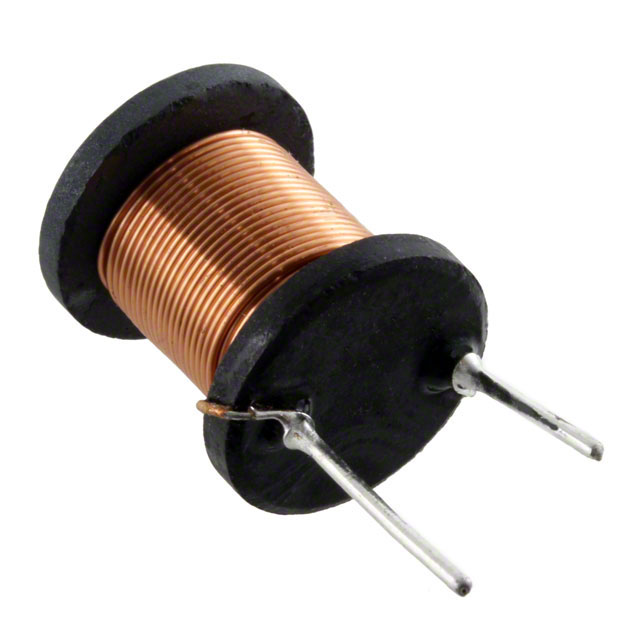

AIUR-15-102K
ActiveAbracon LLC
FIXED IND 1MH 1A 710 MOHM TH
AIUR-15-102K
ActiveAbracon LLC
FIXED IND 1MH 1A 710 MOHM TH
Description
General part information
AIUR-15-102K
1 mH Unshielded Drum Core, Wirewound Inductor 1 A 710mOhm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | AIUR-15-102K |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 710 mOhm |
| Height - Seated (Max) | 0.787 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.709 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
