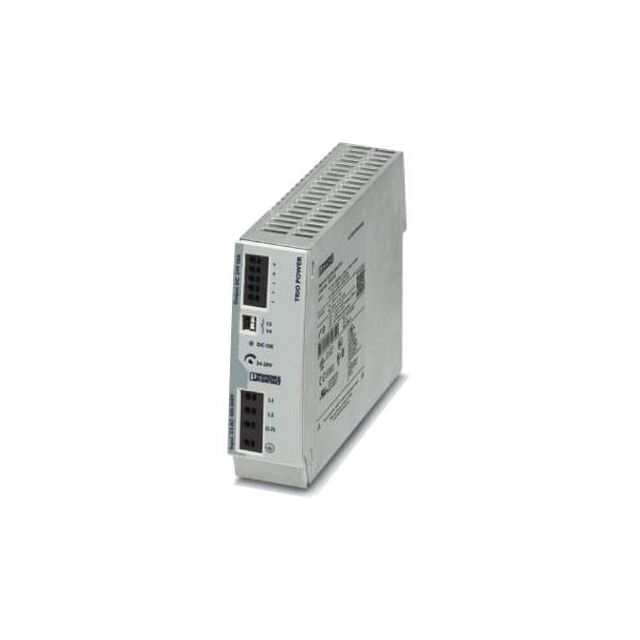

TRIO POWER SUPPLY, INPUT: 3-PHAS
29031548
ActivePerle Systems
TRIO POWER SUPPLY, INPUT: 3-PHAS
Description
General part information
29031548
TRIO POWER SUPPLY, INPUT: 3-PHAS
Technical Specifications
Parameters and characteristics for this part
| Specification | 29031548 |
|---|---|
| AC Voltage - Input (Max) (Range 1) | 575 VAC |
| AC Voltage - Input (Max) (Range 2) | 575 VAC |
| AC Voltage - Input (Min) (Range 1) | 320 VAC |
| AC Voltage - Input (Min) (Range 2) | 360 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | EAC, cULus, CB, UL, cUL |
| Current - Output (Max) | 10 A |
| Efficiency | 92 % |
| Features | Universal Input, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 240 W |
| Size / Dimension Height | 5.12 in |
| Size / Dimension Length | 6.3 in |
| Size / Dimension Width | 1.65 in |
| Standard Number | 60950-1, UL 508 |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
