WT202012-15F2-ID
ActiveTDK Corporation

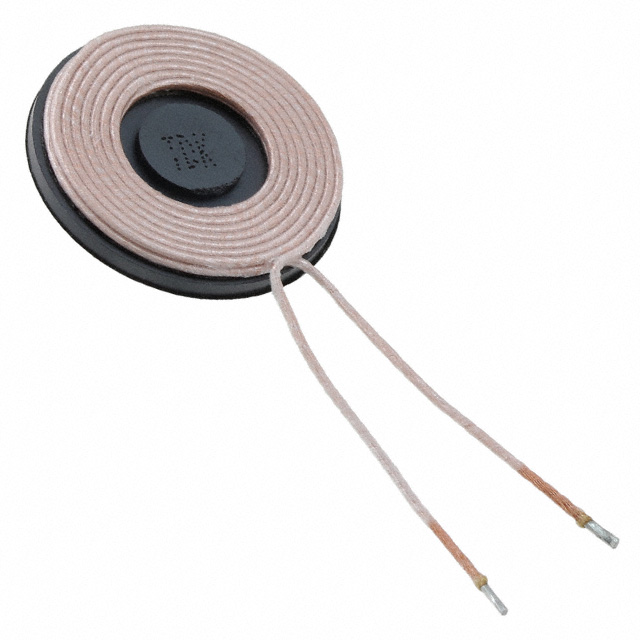

CHARGING COIL, 6.2UH, 5%, 20.3MM DIA, TX
WT202012-15F2-ID
ActiveTDK Corporation
CHARGING COIL, 6.2UH, 5%, 20.3MM DIA, TX
Description
General part information
WT202012-15F2-ID
1 Coil, 2 Layer 6.2µH Wireless Charging Coil Transmitter 80mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | WT202012-15F2-ID |
|---|---|
| DC Resistance (DCR) | 80 mOhm |
| Function | Transmitter |
| Inductance | 6.2 µH |
| Size / Dimension Diameter | 0.8 in |
| Size / Dimension Height | 0.1 in |
| Tolerance | 5 % |
| Type | 1 Coil, 2 Layer |
