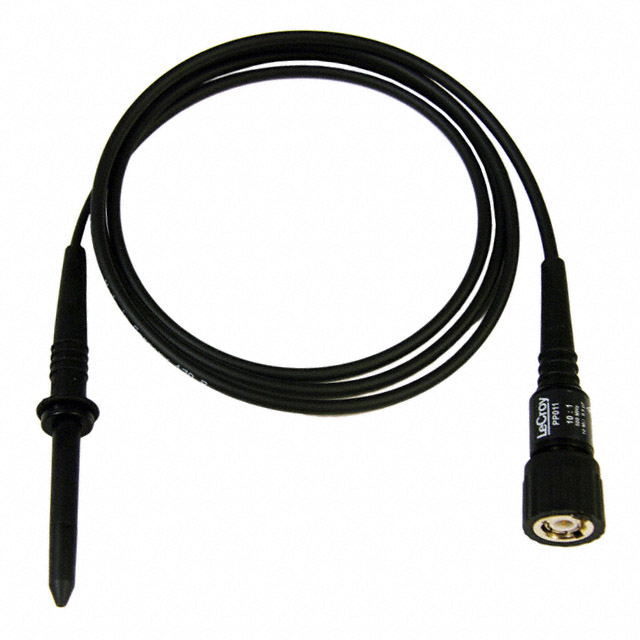

PP011-1
ActiveTeledyne LeCroy
OSCILLOSCOPE PROBE, PASSIVE, 500 MHZ, 400 V, 10:1
PP011-1
ActiveTeledyne LeCroy
OSCILLOSCOPE PROBE, PASSIVE, 500 MHZ, 400 V, 10:1
Description
General part information
PP011-1
PP011-1 is a miniature high impedance passive probe designed for use with ≥ 600MHz Teledyne LeCroy oscilloscopes. Its high input resistance and low capacitance make it ideal for general purpose probing of signals with frequency content from DC through several hundred MHz.
Technical Specifications
Parameters and characteristics for this part
| Specification | PP011-1 |
|---|---|
| Attenuation Value | 10 :1 |
| Bandwidth | 500 MHz |
| Cable Length | 51.181 in |
| Capacitance - Input | 9.5 pF |
| Color | Black |
| Includes | Manual, Adjustment Tool, Sprung Hook, Rigid Tip, Caps, Coding Rings, Ground Lead |
| Resistance - Input | 10 MOhm |
| Type | Passive |
| Voltage - Max (CAT I) | 400 V |
| Voltage - Max (CAT II) | 300 V |
| Voltage - Max Category | CAT I, CAT II |
