100023173

Active

Telegartner Inc

CU-CN AMJ-K MO C6A T568B

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN AMJ-K MO C6A T568B

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100023173	J00029A0 Series

Exterior Contact Finish	Gold	Gold
Exterior Contact Finish Thickness	0.8 µm	0.03 - 0.8 µm
Exterior Contact Finish Thickness	31 µin	1 - 31 µin
Exterior Contact Material	Steel	Phosphor Bronze, Steel
Exterior Housing Color	Natural	Black, Natural
Exterior Housing Material	Zinc	Zinc
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)	USB-A (USB TYPE-A), Receptacle, Modular Jack 8p8c (RJ45, Ethernet)
Features	Shielded	Shielded
Interior Contact Finish	Tin	Gold, Tin
Interior Contact Finish Thickness	3 µm	3 µm
Interior Contact Finish Thickness	118 µin	118 µin
Interior Contact Material	Copper Alloy	Phosphor Bronze, Copper Alloy
Interior Housing Color	Natural	Black, Natural
Interior Housing Material	Zinc	Polycarbonate (PC), Zinc
Interior Type (Adapter End)	Pressdown, IDC, Punchdown Block	USB-A (USB TYPE-A), Receptacle, Pressdown, IDC, Punchdown Block
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Ratings	Cat6a	Cat6a
Style	Modular	USB, Modular

STX USB 3.0 KEYSTONE F-F TYPEA

Part	Exterior Housing Color	Exterior Type (Adapter End)	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Interior Housing Material	Style	Interior Housing Color	Interior Contact Material	Interior Type (Adapter End)	Exterior Contact Material	Exterior Contact Finish	Interior Contact Finish	Exterior Housing Material	Ratings	Features	Interior Contact Finish Thickness	Interior Contact Finish Thickness
Telegartner Inc 100023186	Black	USB-A (USB TYPE-A), Receptacle	0.03 µm	1 µin	-40 °C	70 °C	Polycarbonate (PC)	USB	Black	Phosphor Bronze	Receptacle, USB-A (USB TYPE-A)	Phosphor Bronze	Gold	Gold
Telegartner Inc 100023173	Natural	Modular Jack 8p8c (RJ45, Ethernet)	0.8 µm	31 µin	-40 °C	70 °C	Zinc	Modular	Natural	Copper Alloy	IDC, Pressdown, Punchdown Block	Steel	Gold	Tin	Zinc	Cat6a	Shielded	3 µm	118 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

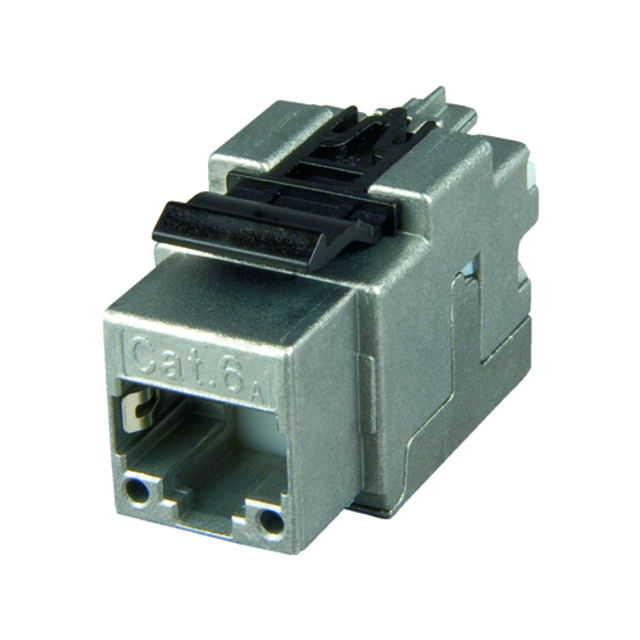

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block Natural
