117-87-668-41-005101
ActivePRECI-DIP SA
CONN IC DIP SOCKET 68POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
117-87-668-41-005101
ActivePRECI-DIP SA
CONN IC DIP SOCKET 68POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 117-87-668-41-005101 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 68 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.07 in |
| Pitch - Mating | 1.78 mm |
| Pitch - Post | 0.07 in |
| Pitch - Post | 1.78 mm |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 504 | $ 3.58 | |
Description
General part information
117-87-668-41-005101

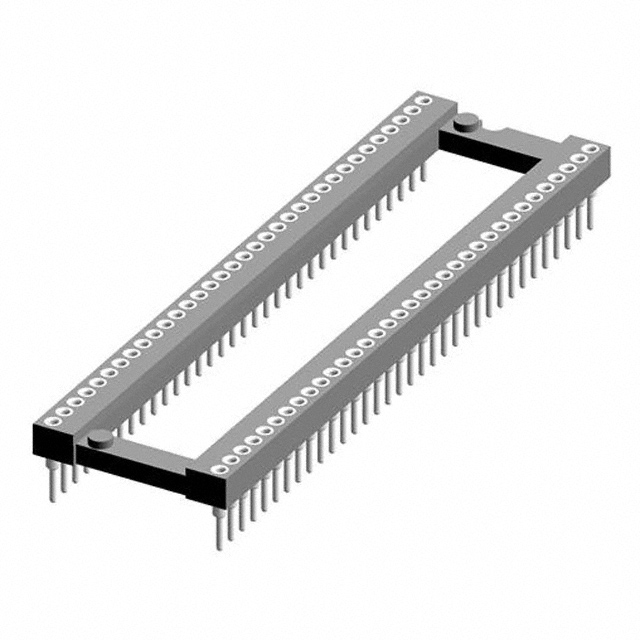

68 (2 x 34) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
