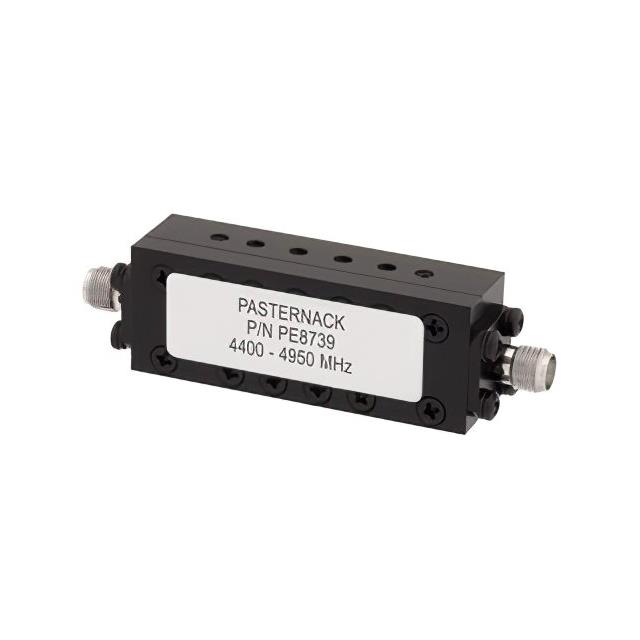

PE8739
ActivePasternack
RF FILTER BAND PASS 4.675GHZ MOD
PE8739
ActivePasternack
RF FILTER BAND PASS 4.675GHZ MOD
Description
General part information
PE8739
4.675GHz Center Frequency Band Pass RF Filter (Radio Frequency) 550MHz Bandwidth 1.25dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PE8739 |
|---|---|
| Bandwidth | 550 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 4.675 GHz |
| Height (Max) | 0.541 " |
| Insertion Loss | 1.25 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 1.969 in |
| Size / Dimension Width | 0.74 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
