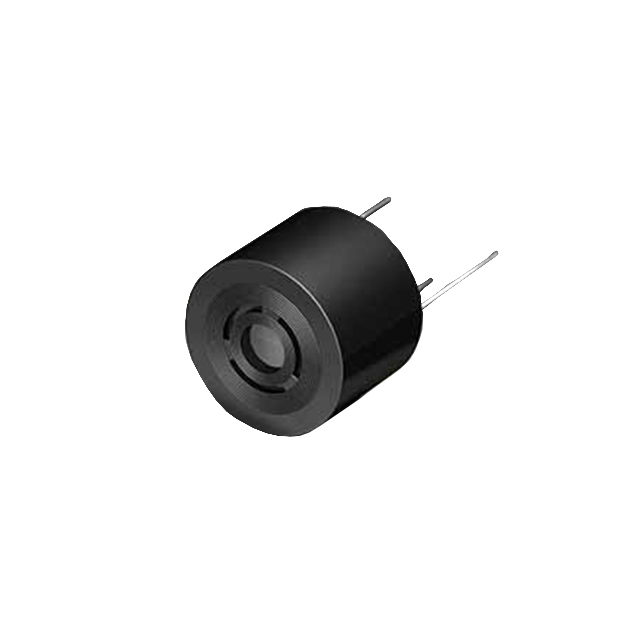

UW-05-515-P(F)

Active

Floyd Bell Inc

BUZZER PIEZO 35.56MM TH

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 35.56MM TH

Technical Specifications

Parameters and characteristics commom to parts in this series

BUZZER PIEZO 35.56MM TH

Part	Technology	Mounting Type	Frequency	Input Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Voltage Range [Min]	Voltage Range [Max]	Sound Pressure Level (SPL)	Termination	Operating Mode	Current - Supply [Max]	Current - Supply [Min]
Floyd Bell Inc UW-05-628-P(S)	Piezo	Through Hole	2.1 kHz	DC	35.56 mm	1.4 in	Top	28.07 mm	1.105 in	6 VDC	28 VDC	93 dB	PC Pins	Warble, Slow	50 mA	20 mA
Floyd Bell Inc UW-05-515-P(F)	Piezo	Through Hole	2.1 kHz	DC	35.56 mm	1.4 in	Top	28.07 mm	1.105 in	5 VDC	15 V	97 dB	PC Pins	Warble Fast	80 mA	35 mA
Floyd Bell Inc UW-05-515-P(S)	Piezo	Through Hole	2.1 kHz	DC	35.56 mm	1.4 in	Top	28.07 mm	1.105 in	5 VDC	15 V	97 dB	PC Pins	Warble, Slow	80 mA	35 mA
Floyd Bell Inc UW-05-628-P(F)	Piezo	Through Hole	2.1 kHz	DC	35.56 mm	1.4 in	Top	28.07 mm	1.105 in	6 VDC	28 VDC	93 dB	PC Pins	Warble Fast	50 mA	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Piezo 35 ~ 80mA 2.1kHz 97dB @ 5V, 61cm Through Hole PC Pins
