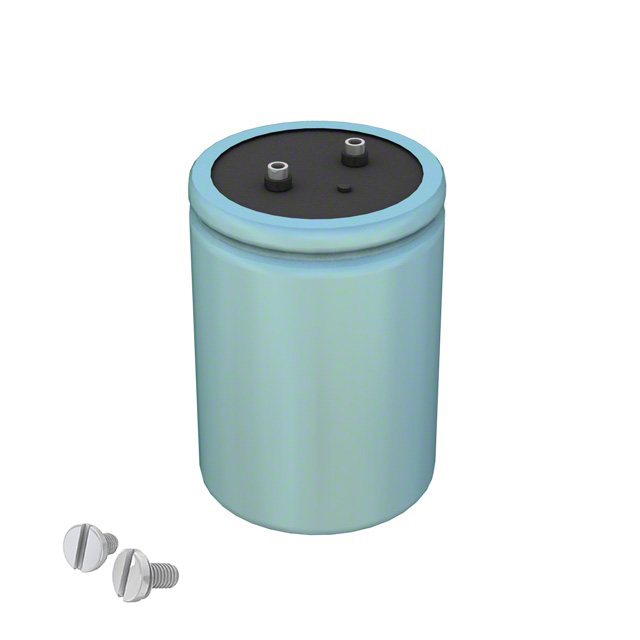

CGR352T200X4C
ActiveCornell Dubilier Knowles
CAP ALUM 3500UF 200V SCREW CHAS
CGR352T200X4C
ActiveCornell Dubilier Knowles
CAP ALUM 3500UF 200V SCREW CHAS
Description
General part information
CGR352T200X4C
3500 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 24mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CGR352T200X4C |
|---|---|
| Applications | General Purpose |
| Capacitance | 3500 µF |
| ESR (Equivalent Series Resistance) | 24 mOhm |
| Height - Seated (Max) | 4.125 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 11.5 A, 13.915 A |
| Size / Dimension Diameter | 3 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 200 VDC |
