TE Connectivity AMP Connectors

CONN RCPT FUTUREBUS 8POS EDGE MT

Find alt
536613-1, 5536613-1

5536613-1

Active
TE Connectivity AMP Connectors

CONN RCPT FUTUREBUS 8POS EDGE MT

Find alt

Description

General part information

Z-PACK Future Bus+ Series

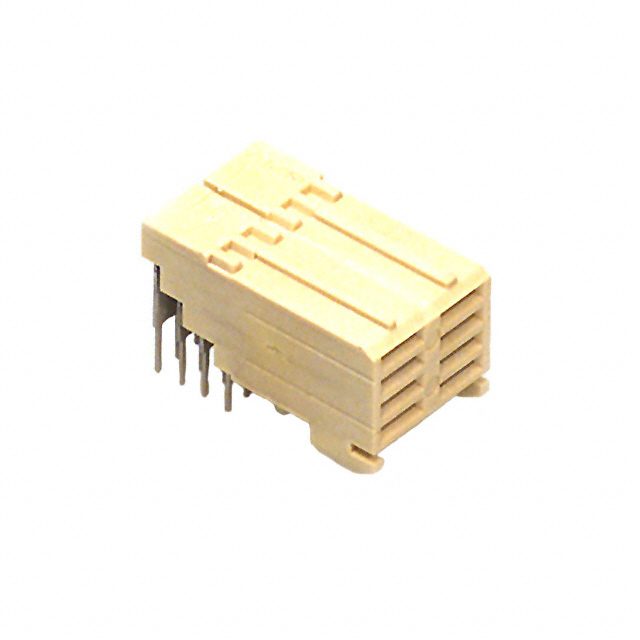

PCB Mount Receptacle, Right Angle, Board-to-Board, 8 Position, 2 mm [.079 in] Centerline, Partially Shrouded, Gold (Au), Z-PACK Future Bus+

Technical Specifications

Parameters and characteristics for this part

Specification5536613-1
Connector StyleFuturebus
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
FeaturesBoard Guide, Spacer
Material Flammability RatingUL94 V-0
Mounting TypeRight Angle, Through Hole, Board Edge
Number of Positions8
Number of Positions LoadedAll
Number of Rows4
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.236 in
Power Contacts (Typical)8
TerminationSolder
Voltage Rating30 V
