325021-03-0
ActiveCurtis Industries

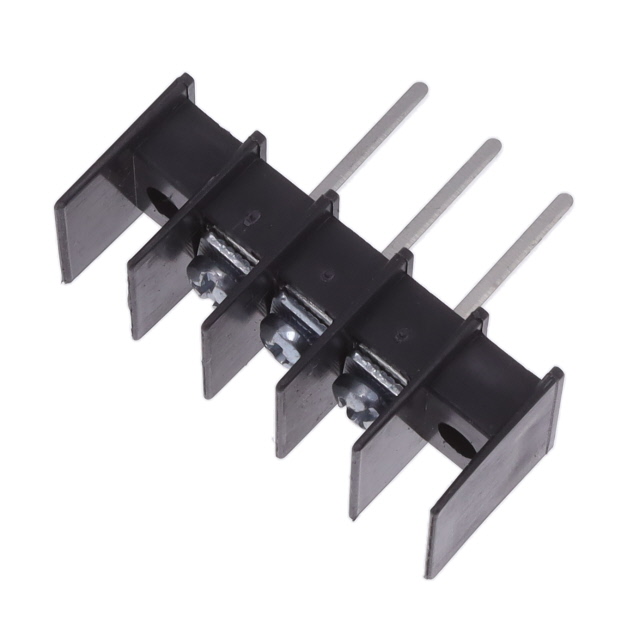

CONN BARRIER STRIP 3CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325021-03-0
ActiveCurtis Industries
CONN BARRIER STRIP 3CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325021-03-0 | 325021 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Wire Wrap | Wire Wrap |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 3 | 1 - 26 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 3 | 2 - 26 |
| Number of Wire Entries | - | 1 - 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.75 | |
| 10 | $ 1.32 | |||
| 30 | $ 1.23 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.95 | |||
325021 Series
CONN BARRIER STRP 13CIRC 0.325"
| Part | Material - Insulation | Terminal Block Type | Barrier Type | Number of Rows | Voltage Rating | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Number of Circuits | Bottom Termination | Features | Operating Temperature | Top Termination | Pitch [x] | Pitch [x] | Number of Wire Entries | Material Flammability Rating | Current Rating (Amps) | Number of Circuits [custom] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325021-13-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 13 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 13 | UL94 V-0 | 15 A | ||
Curtis Industries 325021-06-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 6 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 6 | UL94 V-0 | 15 A | ||
Curtis Industries 325021-26-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 26 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 26 | UL94 V-0 | 15 A | ||
Curtis Industries 325021-08-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 8 | UL94 V-0 | 15 A | 8 | ||
Curtis Industries 325021-23-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 23 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | UL94 V-0 | 15 A | 23 | ||
Curtis Industries 325021-19-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 19 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 19 | UL94 V-0 | 15 A | ||
Curtis Industries 325021-20-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 20 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 20 | UL94 V-0 | 15 A | ||
Curtis Industries 325021-02-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 2 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 2 | UL94 V-0 | 15 A | ||
Curtis Industries 325021-07-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 7 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 7 | UL94 V-0 | 15 A | ||
Curtis Industries 325021-03-0 | Polypropylene (PP) | Barrier Block | 2 Wall (Dual) | 1 | 300 VDC | 14 AWG | 22 AWG | Chassis, Panel, Through Hole | 3 | Wire Wrap | Flange | 105 C | Screws | 8.26 mm | 0.325 in | 3 | UL94 V-0 | 15 A |
Description
General part information
325021 Series
3 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
