Description
General part information
RG223-TF-QM(QTY:10m)

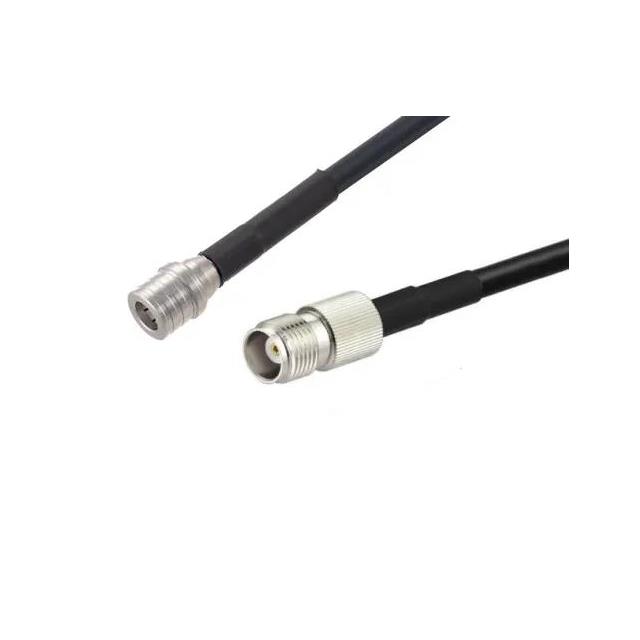

Cable Assembly Coaxial TNC to QMA RG-223 393.7" (10.0m) 32.8'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-TF-QM(QTY:10m) |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Length | 393.7 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | TNC, QMA |
