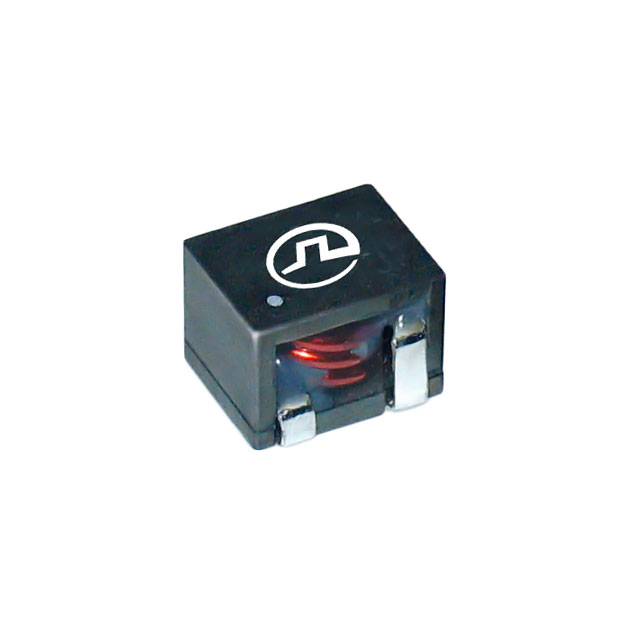

PG0936.183NLT
18 µH Unshielded Wirewound Inductor 9.8 A 13.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PG0936.183NLT |
|---|---|
| Current - Saturation (Isat) | 11 A |
| Current Rating | 9.8 A |
| DC Resistance (DCR) (Max) | 13.8 mOhm |
| Height - Seated (Max) | 0.394 in |
| Inductance | 18 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.689 in |
| Size / Dimension Width | 0.657 in |
| Tolerance | 20 % |
| Type | Wirewound |
