TJSE20707

Active

AMPHENOL PCD

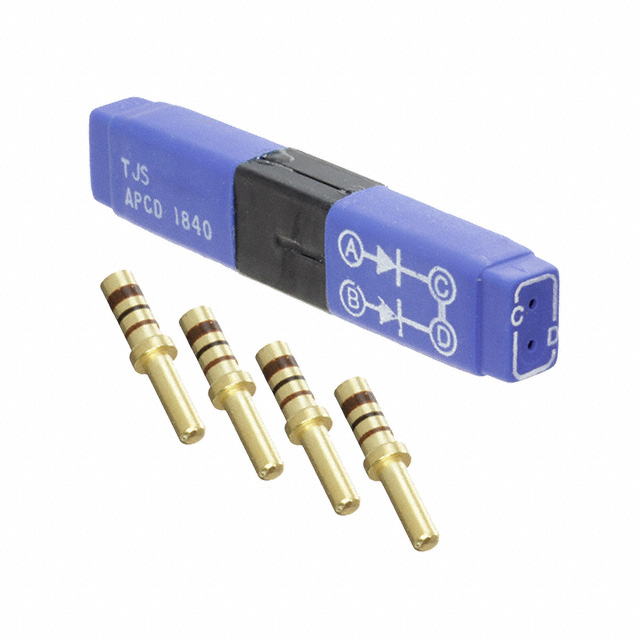

CONN WIRE SPLICE DIODE SZ20 2"L

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN WIRE SPLICE DIODE SZ20 2"L

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TJSE20707	TJSE20 Series

	-	-
Contact Size	20	20
Module Capacity	4	2 - 4
Size / Dimension [x]	2 in	2 in
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [y]	6.99 mm	6.99 mm
Size / Dimension [y]	0.275 in	0.275 in
Size / Dimension [z]	0.4 "	0.4 "
Size / Dimension [z]	10.16 mm	10.16 mm
Type	Wire Splice, Diode	Wire Splice, Resistor, Diode, Capacitor, Diode Resistor

CONN WIRE SPLICE RES SZ20

...

Part	Module Capacity	Contact Size	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
AMPHENOL PCD TJSE20108	2	20	Resistor, Wire Splice
AMPHENOL PCD TJSE20811	4	20	Resistor, Wire Splice
AMPHENOL PCD TJSE20535	2	20		6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20817	4	20	Resistor, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20810	4	20	Resistor, Wire Splice
AMPHENOL PCD TJSE20344
AMPHENOL PCD TJSE20707	4	20	Diode, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20828	2	20	Resistor, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in
AMPHENOL PCD TJSE20555		20	Resistor, Wire Splice
AMPHENOL PCD TJSE20554	4	20	Resistor, Wire Splice	6.99 mm	0.4 "	2 in	10.16 mm	50.8 mm	0.275 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 74.23

General part information

Connector Wire Splice, Diode Contact Size 20

Technical documentation and resources

No documents available
