83653 002100

Active

Belden Inc.

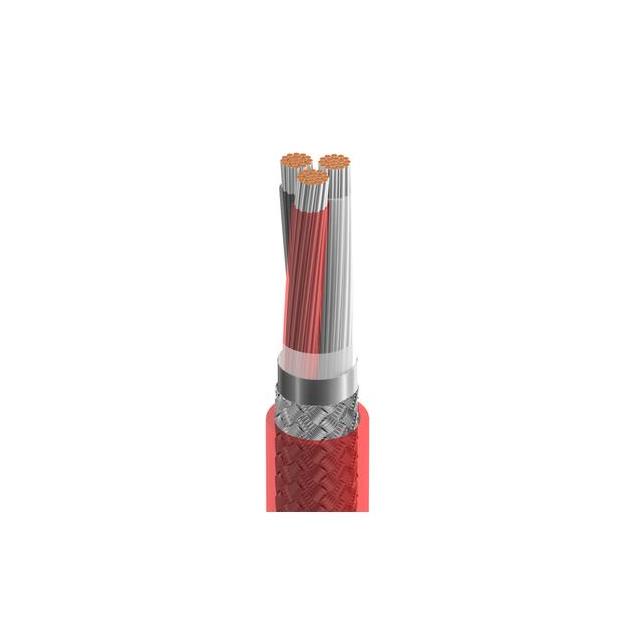

CABLE 3COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83653 002100

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Shield Material	Voltage	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Length [x]	Length [x]	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Ratings	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Cable Type
Belden Inc. 83653 002100	Aluminum Copper Tinned	300 V	Copper Tinned	3	Fluorinated Ethylene-Propylene (FEP) Plenum	30.5 m	100 ft	85 % 100 %	4.57 mm	0.18 in	Fluorinated Ethylene-Propylene (FEP)	18 AWG	19	30 AWG	0.356 mm	0.014 in	Audio Control Instrumentation	UL Style CMP	Braid Foil	200 °C	-70 °C	Red	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 14.36

General part information

3 Conductor Multi-Conductor Cable Red 18 AWG Foil, Braid 100.0' (30.5m)
