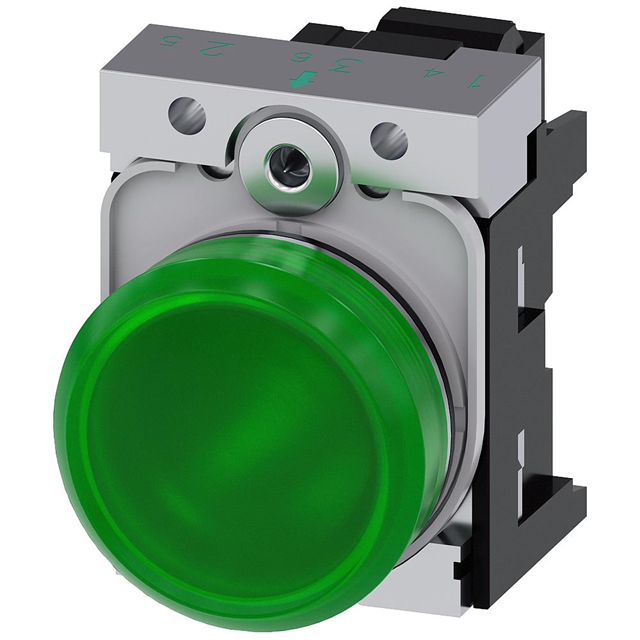

Specification	A6X30143779

Ingress Protection	13, 4X, 3R, NEMA 1, IP66, 4, 2, IP69, 3, IP69K, IP67, 12
Lamp Color	Green
Lens Color	Green
Lens Diameter	30 mm
Lens Style	Round, Flat Top
Lens Transparency	Diffused
Panel Cutout Dimension	0.88 "
Panel Cutout Shape	Round
Ratings	AC
Type	LED
Voltage	230 V

A6X30143 Series

...

Part	Millicandela Rating (Min)	Millicandela Rating (Max)	Lens Diameter	Ingress Protection	Lens Style	Lens Transparency	Voltage	Ratings	Lamp Color	Panel Cutout Shape	Type	Panel Cutout Dimension	Lens Color	Termination Style
Siemens A6X30143132	900 mcd	1800 mcd	22 mm	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	230 V	AC	Green	Round	LED	0.88 "	Green	Screw Terminal
Siemens A6X30143752	900 mcd	1400 mcd	22 mm	12 13 2 3 3R 4 4X IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	230 V	AC	Red	Round	LED	0.88 "	Red	Screw Terminal
Siemens A6X30143749	900 mcd	1400 mcd	22 mm	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	230 V	AC	Red	Round	LED	0.88 "	Red	Screw Terminal
Siemens A6X30143006			30 mm	12 13 2 3 3R 4 4X IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Clear	110 V	AC	Clear	Round	LED	0.88 "	Colorless
Siemens A6X30143757	900 mcd	1400 mcd	22 mm	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	230 V	AC	Yellow	Round	LED	0.88 "	Yellow	Screw Terminal
Siemens A6X30143548	450 mcd	1120 mcd	22 mm	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	110 V	AC	Yellow	Round	LED	0.88 "	Yellow	Spring Terminal
Siemens A6X30143551	450 mcd	1120 mcd	22 mm	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	110 V	AC	Yellow	Round	LED	0.88 "	Yellow	Spring Terminal
Siemens A6X30143759	900 mcd	1400 mcd	22 mm	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	230 V	AC	Yellow	Round	LED	0.88 "	Yellow	Screw Terminal
Siemens A6X30143577	450 mcd	1120 mcd	22 mm	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	110 V	AC	Blue	Round	LED	0.88 "	Blue	Spring Terminal
Siemens A6X30143798			30 mm	12 13 2 3 3R 4 4X IP66 IP67 IP69 IP69K NEMA 1	Flat Top Round	Diffused	230 V	AC	Blue	Round	LED	0.88 "	Blue
