RI-02SMDM-1520-G1
ActiveComus International
SWITCH REED SPST-NO 500MA 140V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RI-02SMDM-1520-G1 |
|---|---|
| Circuit | SPST-NO |
| Current - Carry | 500 mA |
| Current - Switching | 500 mA |
| Height Above Board [z] | 2.41 mm |
| Height Above Board [z] | 0.095 in |
| Length - Overall [x] | 0.639 in |
| Length - Overall [x] | 16.23 mm |
| Mounting Type | Surface Mount |
| Operate Range [Max] | 20 AT |
| Operate Range [Min] | 15 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Rated | 10 W |
| Release Range [Max] | 18 AT |
| Release Range [Min] | 4 AT |
| Size - Body [x] | 0.452 in |
| Size - Body [x] | 11.48 mm |
| Size - Body [y] | 0.09 in |
| Size - Body [y] | 2.29 mm |
| Size - Body [z] | 0.09 " |
| Size - Body [z] | 2.29 mm |
| Termination Style | Gull Wing |
| Type | Molded Body Reed |
| Voltage - Switching AC [custom] | 140 V |
| Voltage - Switching DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.49 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.57 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.49 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.45 | |||
| Tape & Reel (TR) | 2500 | $ 0.45 | ||
Description
General part information

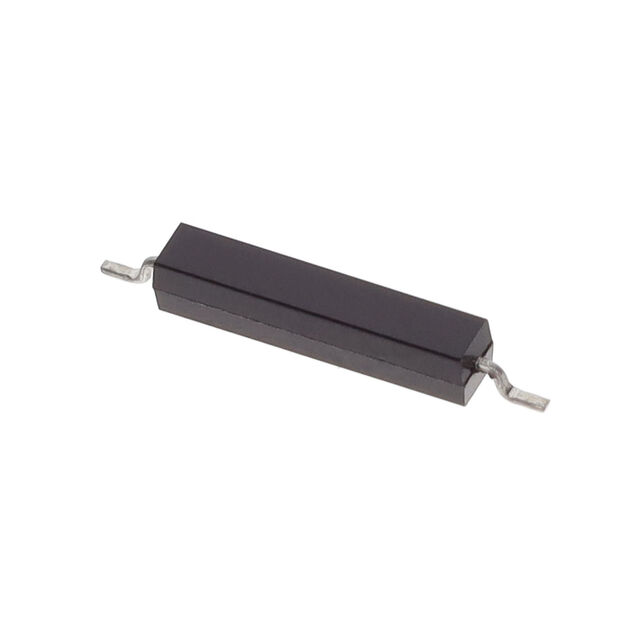

RI-02SMDM-1520-G1
Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 500mA (AC/DC) 140 V Surface Mount
