74V1T04STR

Active

STMicroelectronics

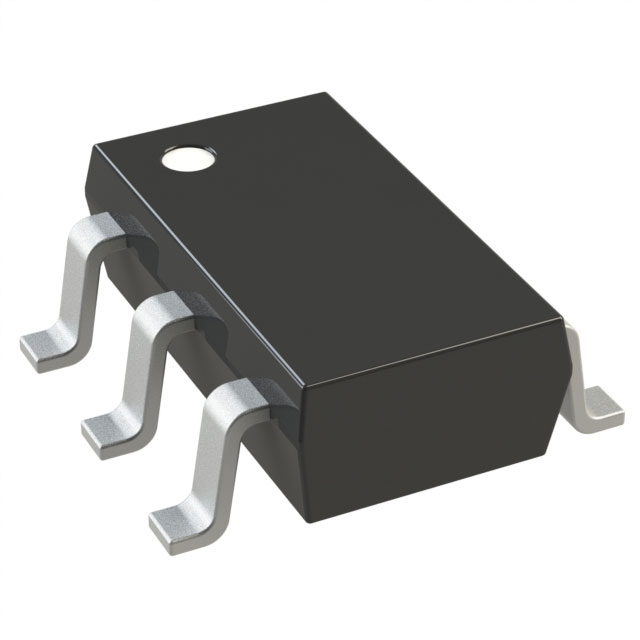

IC INVERTER 1CH 1-INP SOT23-5

Search across all available documentation for this part.

Active

STMicroelectronics

IC INVERTER 1CH 1-INP SOT23-5

Technical Specifications

Parameters and characteristics for this part

Specification	74V1T04STR

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Current - Quiescent (Max) [Max]	1 çA
Input Logic Level - Low	0.8 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	7.7 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-74A, SOT-753
Supplier Device Package	SOT-23-5
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC INVERTER 1CH 1-INP SOT23-5

Part	Input Logic Level - Low	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Inputs	Supplier Device Package	Number of Circuits	Current - Quiescent (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Max Propagation Delay @ V, Max CL	Logic Type	Mounting Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]
STMicroelectronics 74V1T04STR	0.8 V	8 mA	8 mA	1	SOT-23-5	1	1 çA	-55 °C	125 °C	7.7 ns	Inverter	Surface Mount	SC-74A, SOT-753	4.5 V	5.5 V

General part information

Inverter IC 1 Channel SOT-23-5
