1013096
ActivePhoenix Contact

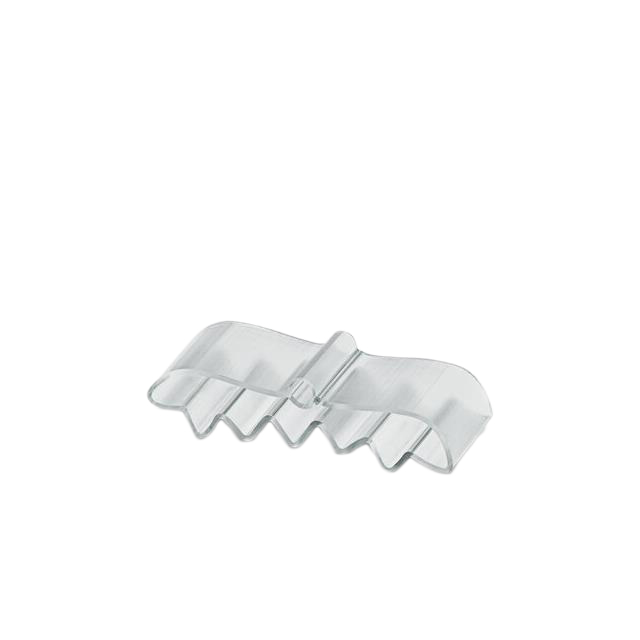

WIRE MARKER SLIP-ON 15MM X 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1013096
ActivePhoenix Contact
WIRE MARKER SLIP-ON 15MM X 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1013096 | PATG Series |
|---|---|---|
| Cable Diameter | - | 1.5 - 35 mm |
| Cable Diameter | - | 0.059 - 1.969 in |
| Cable Diameter | - | 50 mm |
| Cable Diameter [Max] [diameter] | 1.378 in | 0.047 - 1.378 in |
| Cable Diameter [Max] [diameter] | 35 mm | 1.2 - 35 mm |
| Cable Diameter [Min] [diameter] | 30 mm | 0.6 - 30 mm |
| Cable Diameter [Min] [diameter] | 1.181 in | 0.024 - 1.181 in |
| Color | Transparent | Transparent |
| Legend | Blank | Blank |
| Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Size [x] | 4 mm | 4 - 23 mm |
| Size [x] | 0.16 " | 0.16 - 0.91 in |
| Size [y] | 15 mm | 4 - 30 mm |
| Size [y] | 0.59 in | 0.16 - 1.18 in |
| Type | - | Wire Marker, Slip-On |
PATG Series
WIRE MARKER SLIP-ON 18X4MM TRANS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Size [y] | Size [x] | Size [y] | Size [x] | Material | Color | Legend | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [diameter] | Cable Diameter [diameter] | Type | Cable Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0820523 | -50 °C | 80 C | 4 mm | 0.71 in | 0.16 in | 18 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 2 mm | 4 mm | 0.079 in | 0.157 in | ||||
Phoenix Contact 1013096 | -50 °C | 80 C | 15 mm | 0.16 " | 0.59 in | 4 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 30 mm | 35 mm | 1.181 in | 1.378 in | ||||
Phoenix Contact 0827078 | -50 °C | 80 C | 12 mm | 0.16 " | 0.47 " | 4 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 2 mm | 4 mm | 0.079 in | 0.157 in | ||||
Phoenix Contact 0822453 | -50 °C | 80 C | 30 mm | 0.16 " | 1.18 in | 4 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 2 mm | 4 mm | 0.079 in | 0.157 in | ||||
Phoenix Contact 1013818 | -50 °C | 80 C | 4 mm | 0.16 " | 0.39 " | 10 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 2 mm | 4 mm | 0.079 in | 0.157 in | ||||
Phoenix Contact 1013067 | -50 °C | 80 C | 15 mm | 0.16 " | 0.59 in | 4 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 10 mm, 14 mm | 0.394 in, 0.551 in | ||||||
Phoenix Contact 0828062 | -50 °C | 80 C | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 14 mm, 22 mm | 0.551 in, 0.866 in | Wire Marker, Slip-On | |||||||||
Phoenix Contact 0827076 | -50 °C | 80 C | 12 mm | 0.16 " | 0.47 " | 4 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 0.6 mm | 1.2 mm | 0.024 in | 0.047 in | ||||
Phoenix Contact 0820510 | -50 °C | 80 C | 4 mm | 0.71 in | 0.16 in | 18 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 1.5 mm, 2.5 mm | 0.059 in, 0.098 in | ||||||
Phoenix Contact 0822466 | -50 °C | 80 C | 30 mm | 0.16 " | 1.18 in | 4 mm | Poly-Vinyl Chloride (PVC) | Transparent | Blank | 4 mm | 7 mm | 0.157 in | 0.276 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 0.85 | |
Description
General part information
PATG Series
Wire Marker Carrier, Slip-On 0.59" W x 0.16" L (15.0mm x 4.0mm) Transparent Poly-Vinyl Chloride (PVC)
