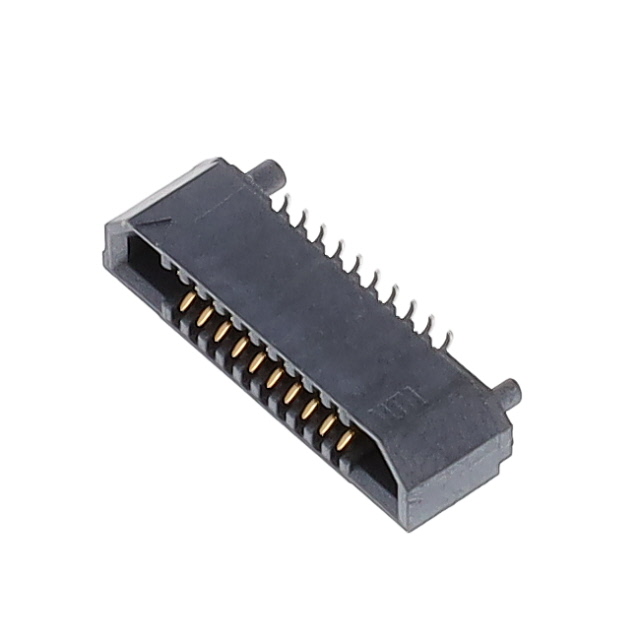

ERF6-10-03.5-L-DV-A-K-TR
ActiveSamtec Inc.
CONN SKT 0.635MM 20POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
ERF6-10-03.5-L-DV-A-K-TR
ActiveSamtec Inc.
CONN SKT 0.635MM 20POS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERF6-10-03.5-L-DV-A-K-TR |
|---|---|
| Connector Type | Socket, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.127 in |
| Height Above Board | 3.23 mm |
| Mated Stacking Heights | 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.38 | |
| 10 | $ 4.57 | |||
| 25 | $ 4.28 | |||
| 50 | $ 4.08 | |||
| 100 | $ 3.88 | |||
| 250 | $ 3.64 | |||
| Tape & Reel (TR) | 850 | $ 2.86 | ||
Description
General part information
ERF6-10 Series
20 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
