4282-8PG-300
ActiveConxall/Switchcraft

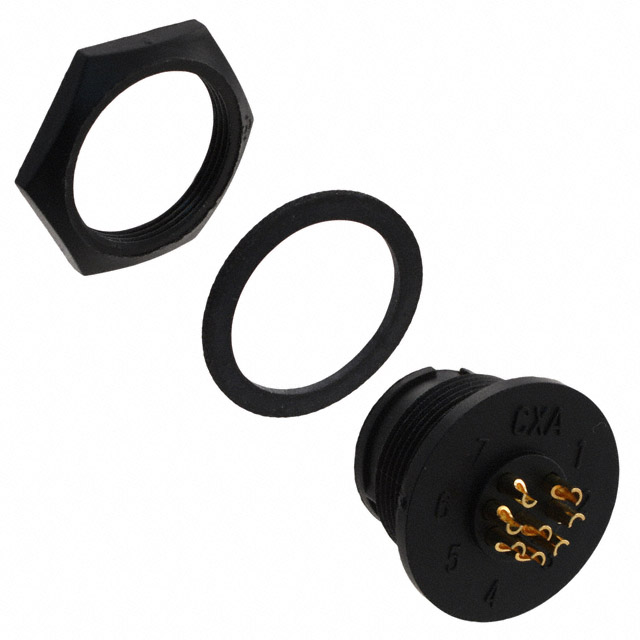

CONN RCPT MALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
4282-8PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 8P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4282-8PG-300 | 4282-8P Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 8 | 8 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
4282-8P Series
CONN RCPT MALE 8P GOLD SLDR CUP
| Part | Orientation | Shielding | Voltage Rating | Contact Material | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Fastening Type | Color | Current Rating (Amps) | Connector Type | Contact Finish - Mating | Number of Positions | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 4282-8PG-300 | Keyed | Unshielded | 600 V | Brass | Bulkhead - Front Side Nut | -40 °C | 115 °C | Plastic | Bayonet Lock | Black | 5.6 A | Male Pins, Receptacle | Gold | 8 | Weathertight |
Conxall/Switchcraft 4282-8PG-3ES | Keyed | Unshielded | 600 V | Brass | Bulkhead - Front Side Nut | -40 °C | 115 °C | Plastic | Bayonet Lock | Black | 5.6 A | Male Pins, Receptacle | Gold | 8 | Weathertight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.80 | |
| 10 | $ 12.23 | |||
| 25 | $ 11.76 | |||
| 50 | $ 11.29 | |||
| 100 | $ 10.67 | |||
| 300 | $ 9.72 | |||
| 500 | $ 9.10 | |||
| 1000 | $ 8.34 | |||
Description
General part information
4282-8P Series
8 Position Circular Connector Receptacle, Male Pins Solder Cup
