2713764
ActivePhoenix Contact

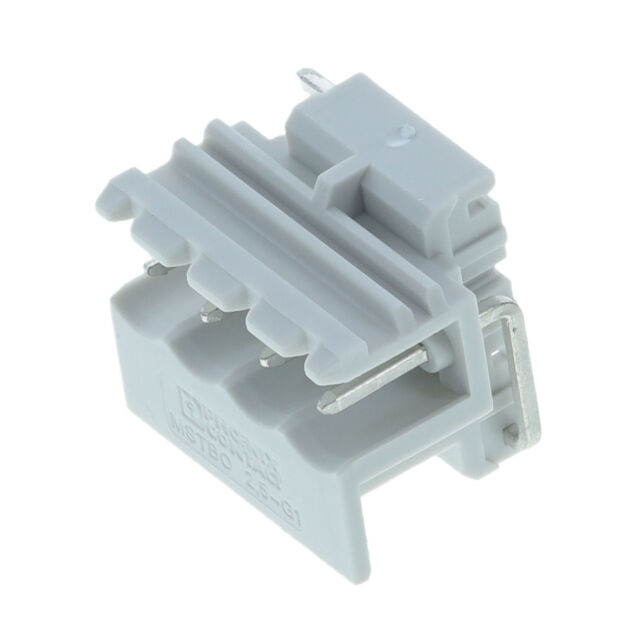

KIT CONSISTING OF COMBICON HEADER AND SCREW CONNECTORS FOR 6 X 4 POSITIONS (24-POS.), COLOR: LIGHT GRAY
2713764
ActivePhoenix Contact
KIT CONSISTING OF COMBICON HEADER AND SCREW CONNECTORS FOR 6 X 4 POSITIONS (24-POS.), COLOR: LIGHT GRAY
Description
General part information
2713764
4 Position Terminal Block Header, Male Pins and Plug, Female Sockets 0.197" (5.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2713764 |
|---|---|
| Color | Gray |
| Current - IEC | 12 A |
| Current - UL | 15 A |
| Features | Assembly Kit (6 pieces) |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 0.197 in |
| Positions Per Level | 4 |
| Type | Female Sockets, Header, Male Pins and Plug |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 30 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
