1400711
ObsoletePhoenix Contact
FIBER OPTIC CBL SCRJ-ST OM3 2M
1400711
ObsoletePhoenix Contact
FIBER OPTIC CBL SCRJ-ST OM3 2M
Description
General part information
1400711

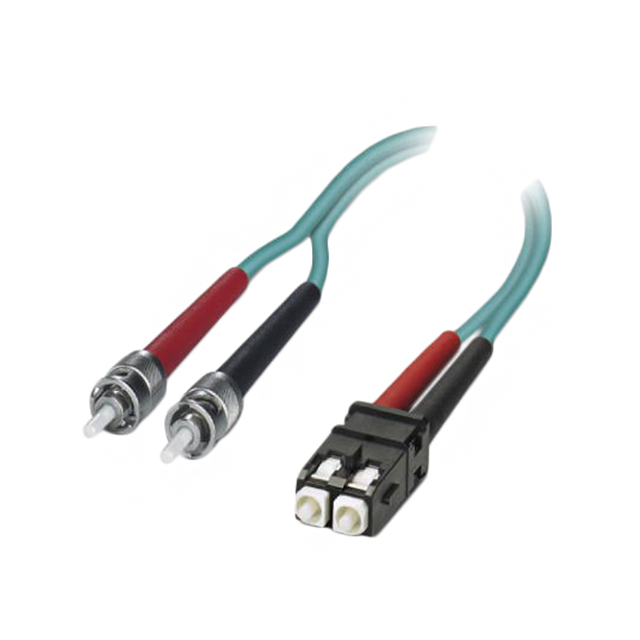

Cable Fiber Optic ST (2) To SCRJ Duplex 50/125 6.6' (2.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1400711 |
|---|---|
| 1st Connector | ST |
| 1st Connector Quantity | 2 |
| 2nd Connector | SCRJ Duplex |
| Bend Radius | 15 mm |
| Cable Type | Twin Zip |
| Color - Cable | Aqua |
| Color - Connectors | Black, Red, Beige |
| Features | IP20, Zipcord |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.3 dB |
| Length - Overall | 6.6 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Return Loss | 35 dB |
| Type | Multimode, OM3 |
