MSW01E20-24S

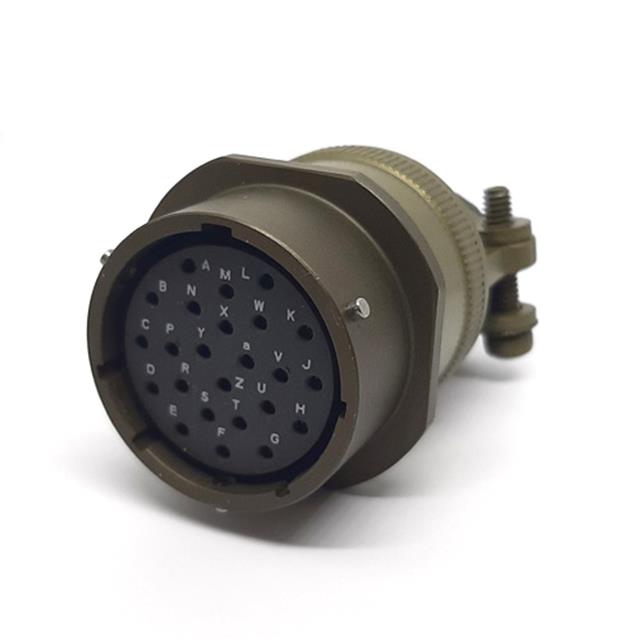

24 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW01E20-24S |
|---|---|
| Applications | Military |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Cadmium |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 24 |
| Shell Size - Insert (Minimum) | 20 |
| Termination | Solder |
| Voltage Rating | 800 V |
