IS25LQ016B-JKLE
ActiveISSI, Integrated Silicon Solution Inc

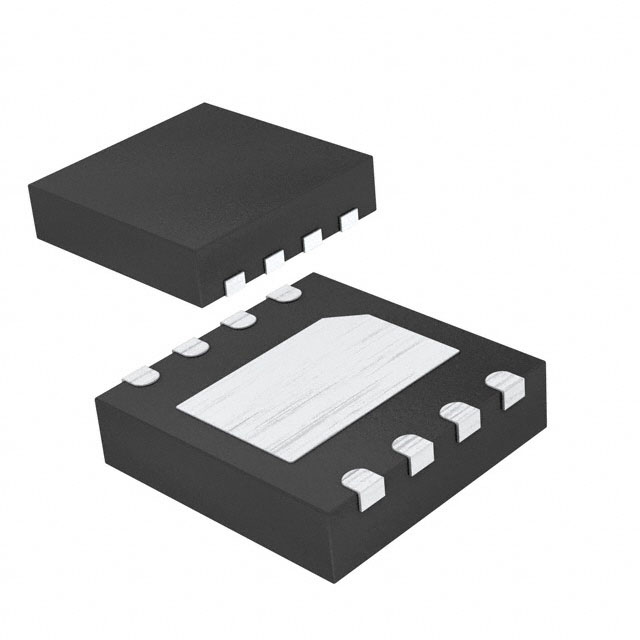

IC FLASH 16MBIT SPI/QUAD 8WSON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IS25LQ016B-JKLE
ActiveISSI, Integrated Silicon Solution Inc
IC FLASH 16MBIT SPI/QUAD 8WSON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IS25LQ016B-JKLE | IS25LQ016 Series |
|---|---|---|
| Clock Frequency | 104 MHz | 104 MHz |
| Memory Format | FLASH | FLASH |
| Memory Interface | SPI - Quad I/O | SPI - Quad I/O |
| Memory Organization | 2 M | 2 M |
| Memory Size | 16 Mb | 16 Mb |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-WDFN Exposed Pad | 8-SOIC, 16-SOIC, 8-WDFN Exposed Pad |
| Package / Case | - | 3.9 - 7.5 mm |
| Package / Case | - | 0.154 - 0.295 " |
| Supplier Device Package | 8-WSON (6x5) | 8-SOIC, 16-SOIC, 8-WSON (6x5) |
| Technology | FLASH - NOR | FLASH - NOR |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.3 V | 2.3 V |
| Write Cycle Time - Word, Page | 1 ms | 1 - 2 ms |
IS25LQ016 Series
IC FLASH 16MBIT SPI/QUAD 8SOIC
| Part | Clock Frequency | Memory Type | Memory Organization | Memory Size | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Write Cycle Time - Word, Page | Technology | Memory Format | Package / Case [y] | Package / Case | Package / Case [x] | Memory Interface | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISSI, Integrated Silicon Solution Inc IS25LQ016B-JBLE-TR | 104 MHz | Non-Volatile | 2 M | 16 Mb | 105 °C | -40 °C | 2.3 V | 3.6 V | 1 ms | FLASH - NOR | FLASH | 5.3 mm | 8-SOIC | 0.209 " | SPI - Quad I/O | 8-SOIC | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS25LQ016B-JMLE-TR | 104 MHz | Non-Volatile | 2 M | 16 Mb | 105 °C | -40 °C | 2.3 V | 3.6 V | 1 ms | FLASH - NOR | FLASH | 7.5 mm | 16-SOIC | 0.295 in | SPI - Quad I/O | 16-SOIC | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS25LQ016B-JKLE | 104 MHz | Non-Volatile | 2 M | 16 Mb | 105 °C | -40 °C | 2.3 V | 3.6 V | 1 ms | FLASH - NOR | FLASH | 8-WDFN Exposed Pad | SPI - Quad I/O | 8-WSON (6x5) | Surface Mount | ||
ISSI, Integrated Silicon Solution Inc IS25LQ016-JBLE | 104 MHz | Non-Volatile | 2 M | 16 Mb | 105 °C | -40 °C | 2.3 V | 3.6 V | 2 ms | FLASH - NOR | FLASH | 5.3 mm | 8-SOIC | 0.209 " | SPI - Quad I/O | 8-SOIC | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS25LQ016B-JNLE | 104 MHz | Non-Volatile | 2 M | 16 Mb | 105 °C | -40 °C | 2.3 V | 3.6 V | 1 ms | FLASH - NOR | FLASH | 3.9 mm | 8-SOIC | 0.154 in | SPI - Quad I/O | 8-SOIC | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS25LQ016B-JNLE-TR | 104 MHz | Non-Volatile | 2 M | 16 Mb | 105 °C | -40 °C | 2.3 V | 3.6 V | 1 ms | FLASH - NOR | FLASH | 3.9 mm | 8-SOIC | 0.154 in | SPI - Quad I/O | 8-SOIC | Surface Mount |
ISSI, Integrated Silicon Solution Inc IS25LQ016B-JMLE | 104 MHz | Non-Volatile | 2 M | 16 Mb | 105 °C | -40 °C | 2.3 V | 3.6 V | 1 ms | FLASH - NOR | FLASH | 7.5 mm | 16-SOIC | 0.295 in | SPI - Quad I/O | 16-SOIC | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IS25LQ016 Series
FLASH - NOR Memory IC 16Mbit SPI - Quad I/O 104 MHz 8-WSON (6x5)
