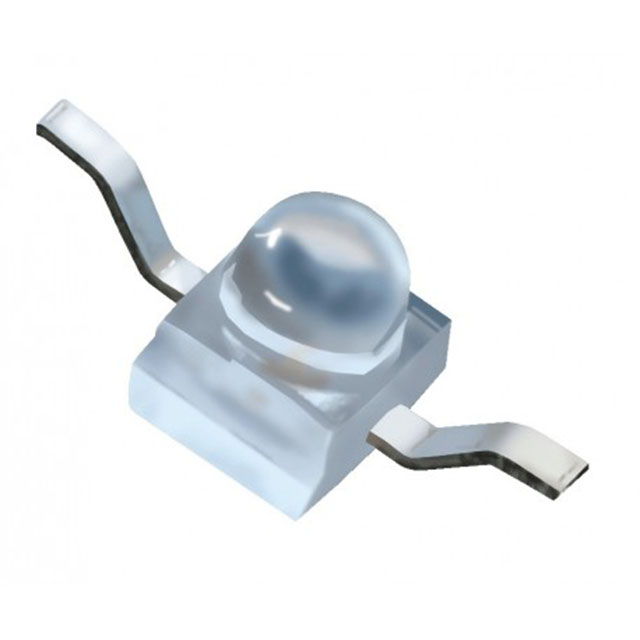

91-21SYGC/S530-E2/TR10
ActiveEverlight Electronics Co Ltd
LED YLW-GRN CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
91-21SYGC/S530-E2/TR10
ActiveEverlight Electronics Co Ltd
LED YLW-GRN CLEAR SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 91-21SYGC/S530-E2/TR10 |
|---|---|
| Color | Yellow-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 2.9 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.9 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 330 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Viewing Angle | 25 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 573 nm |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| Digi-Reel® | 1 | $ 0.43 | ||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 5000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
| 50000 | $ 0.09 | |||
| 100000 | $ 0.08 | |||
Description
General part information
91-21SYGC/S530-E2/TR10
Yellow-Green 573nm LED Indication - Discrete 2V 2-SMD, Z-Bend
Documents
Technical documentation and resources
No documents available
