CGB4B3JB1E105K055AB
ObsoleteTDK Corporation
CAP CER 1UF 25V JB 0805
CGB4B3JB1E105K055AB
ObsoleteTDK Corporation
CAP CER 1UF 25V JB 0805
Description
General part information
CGB4B3JB1E105K055AB

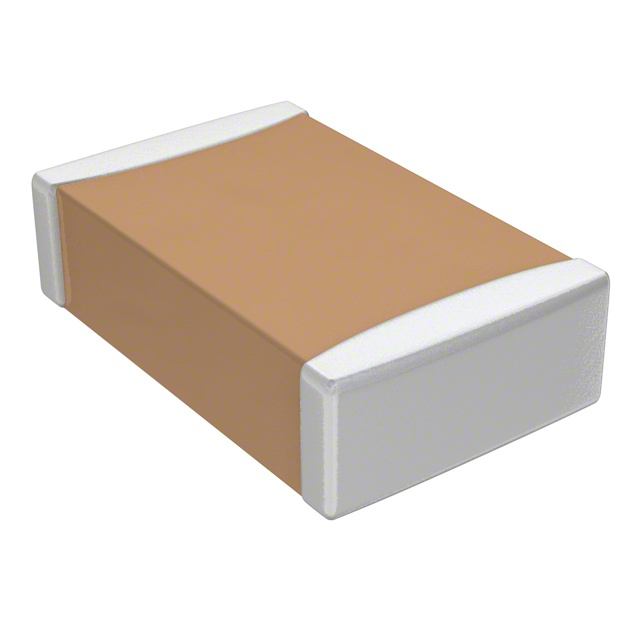

1 µF ±10% 25V Ceramic Capacitor JB 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CGB4B3JB1E105K055AB |
|---|---|
| Applications | General Purpose |
| Capacitance | 1 µF |
| Features | Low Profile |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | JB |
| Thickness (Max) | 0.022 in |
| Tolerance | 10 % |
| Voltage - Rated | 25 VAC |
