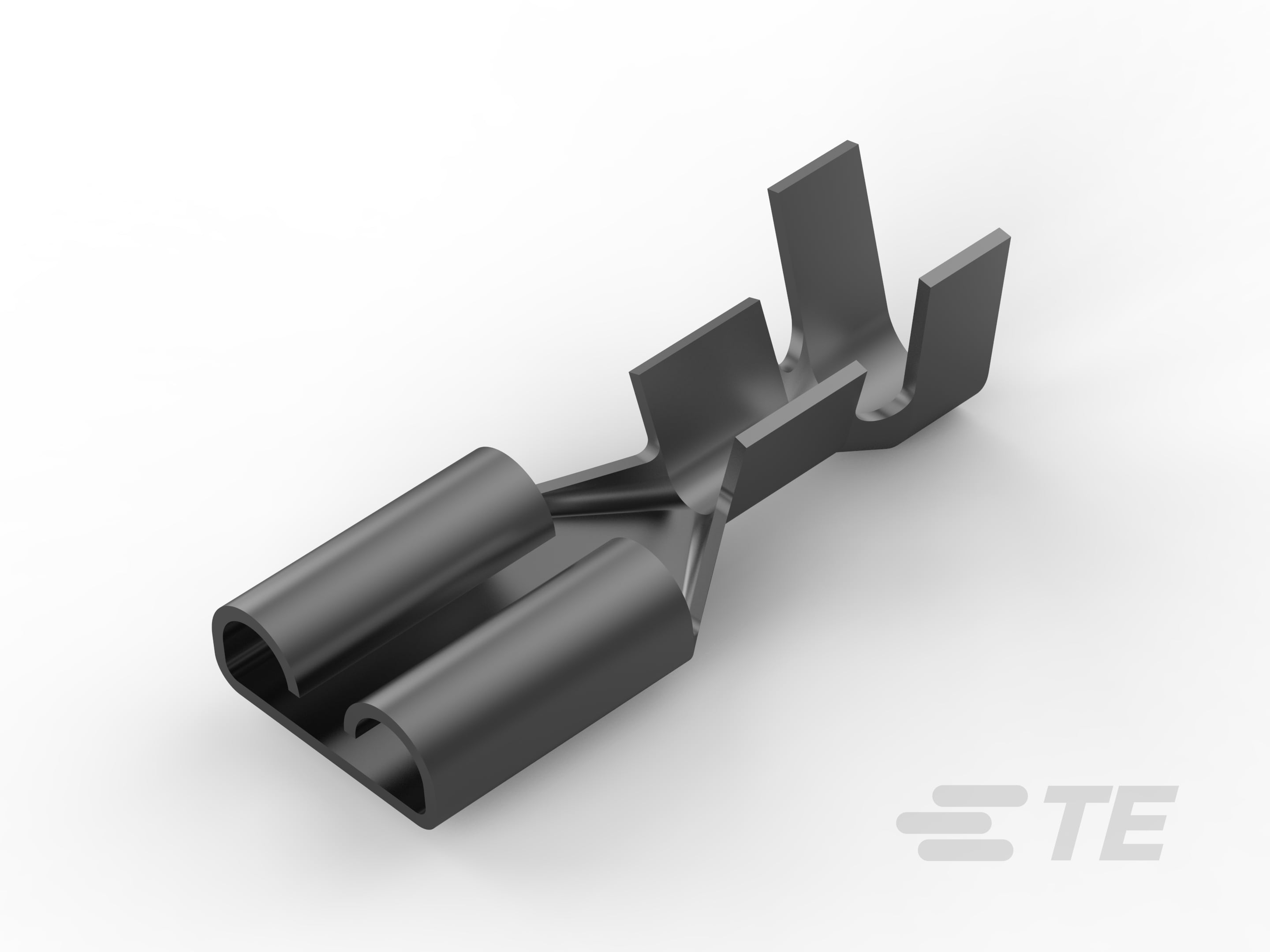

Specification	42299-2

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter (Max)	0.125 in
Insulation Diameter (Min)	0.085 in
Length - Overall	0.616 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.25 in
Tab Thickness	0.032 in
Tab Width	0.205 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

FASTON 205 Series

Part	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Termination	Terminal Type	Tab Thickness	Length - Overall	Tab Width	Tab Length	Gender	Mounting Type	Color	Contact Finish	Terminal Angle	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 42239-4	Non-Insulated	18 AWG	14 AWG	Phosphor Bronze	Crimp	Standard	0.032 in	0.468 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)
TE Connectivity AMP Connectors 640174-1	Non-Mating End Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.02 in	0.8 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)	Black Stripe Red	Tin
TE Connectivity AMP Connectors 8-640913-1	Non-Mating End Insulated	16 AWG	14 AWG	Brass	Crimp	Standard	0.02 in	0.8 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)	Blue	Tin
TE Connectivity AMP Connectors 42199-2	Non-Insulated	20.5 AWG	16 AWG	Brass	Crimp	Angled Flag	0.02 in		0.205 in	0.25 in	Female	Free Hanging (In-Line) Right Angle		Tin	90 °
TE Connectivity AMP Connectors 61836-1	Non-Insulated			Brass	Rivet Screw Stud	Angled	0.032 in		0.205 in		Male	Board Chassis			90 °
TE Connectivity AMP Connectors 62531-1	Non-Insulated	18 AWG	14 AWG	Brass	Crimp	Standard	0.02 in		0.205 in	0.25 in	Male	Free Hanging (In-Line)		Tin		0.12 in	0.15 in
TE Connectivity AMP Connectors 170181-2	Non-Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.031 in	0.618 in	0.205 in	0.252 in	Female	Free Hanging (In-Line)		Tin
TE Connectivity AMP Connectors 42198-2	Non-Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.02 in	0.616 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)		Tin		0.085 in	0.125 in
TE Connectivity AMP Connectors 42781-2	Non-Insulated	18 AWG	14 AWG	Brass	Crimp	Standard	0.02 in	0.615 in	0.205 in	0.25 in	Female	Free Hanging (In-Line)		Tin		0.13 in	0.18 in
TE Connectivity AMP Connectors 42197-2	Non-Insulated	22 AWG	18 AWG	Brass	Crimp	Standard	0.02 in	0.468 in	0.205 in	0.246 in	Female	Free Hanging (In-Line)		Tin
