Description
General part information

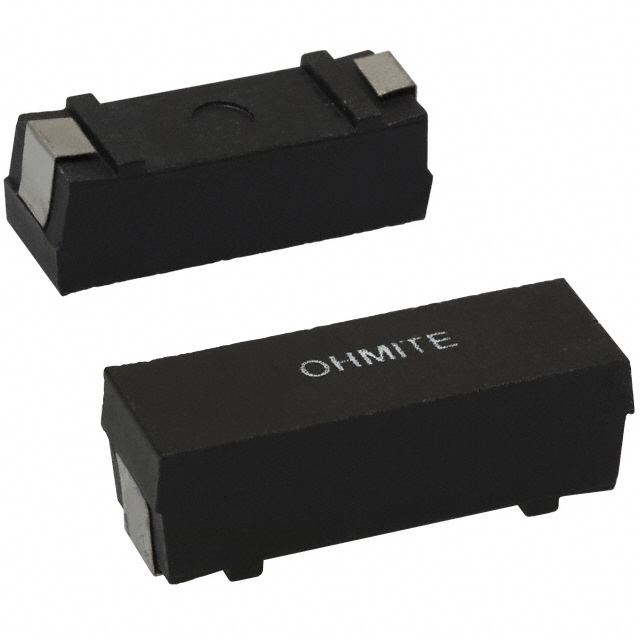

RC1R0EA100RK
100 Ohms ±10% 1W Chip Resistor 8127 J-Lead Pulse Withstanding Carbon Composition
Technical Specifications
Parameters and characteristics for this part
| Specification | RC1R0EA100RK |
|---|---|
| Composition | Carbon Composition |
| Features | Pulse Withstanding |
| Height - Seated (Max) | 0.278 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 8127 J-Lead |
| Package Name | SMD J-Lead, Recessed |
| Power (Watts) | 1 W |
| Resistance | 100 Ohms |
| Size / Dimension Length | 0.811 in |
| Size / Dimension Width | 0.273 in |
| Temperature Coefficient | -1300ppm/°C |
| Temperature Coefficient | -1300 ppm/°C |
| Tolerance | 10 % |
