DT-AR-045-24
ActiveEuropean Thermodynamics Ltd
TE ASSY,DA,45W,24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DT-AR-045-24
ActiveEuropean Thermodynamics Ltd
TE ASSY,DA,45W,24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DT-AR-045-24 |
|---|---|
| Current | 2.9 A |
| Dimensions - Overall [x] | 160 mm |
| Dimensions - Overall [y] | 126 mm |
| Dimensions - Overall [z] | 82 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Power - Cooling | 47.9 W |
| Power - Input | 58 W |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 253.95 | |
| 5 | $ 238.68 | |||
| 10 | $ 232.39 | |||
| 25 | $ 224.33 | |||
Description
General part information
DT-AR-045-24

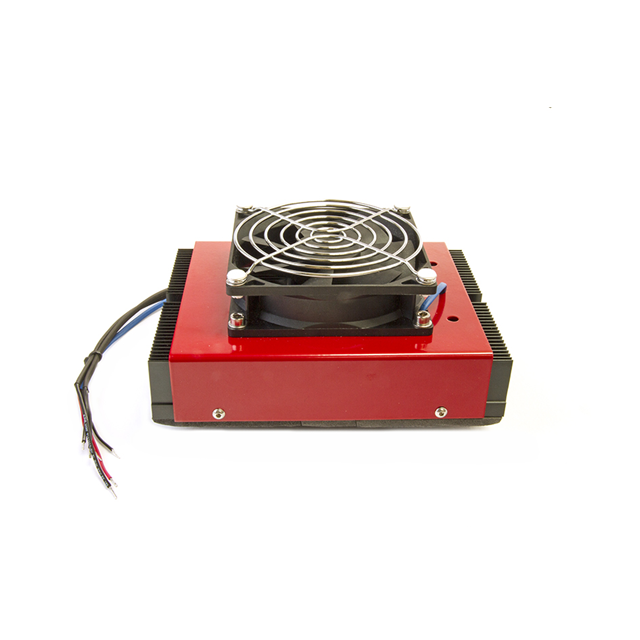

Direct to Air Thermoelectric Assembly 47.9 W
Documents
Technical documentation and resources
