RFD-1681-4

Active

RF Industries

7/16 DIN FEMALE-4.1/9.5 MALE

Search across all available documentation for this part.

Active

RF Industries

7/16 DIN FEMALE-4.1/9.5 MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1681-4

Adapter Series	, 0.4375 DIN
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	4.1/9.5 Plug, Male Pin
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Style	Straight

7/16 DIN FEMALE-4.1/9.5 MALE

Part	Adapter Type	Body Material	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Dielectric Material	Adapter Series	Convert To (Adapter End)	Mounting Type	Convert From (Adapter End)	Insertion Loss	Conversion Type	Mating Cycles	Body Finish	Frequency - Max [Max]	Impedance	Style
RF Industries RFD-1681-4	Plug to Jack	Brass	Phosphor Bronze	85 °C	-55 °C	Silver	Polytetrafluoroethylene (PTFE)	, 0.4375 DIN	7/16 Jack, Female Socket	Free Hanging (In-Line)	4.1/9.5 Plug, Male Pin	0.05 dB	Between Series	500	White Bronze	7.5 GHz	50 Ohms	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

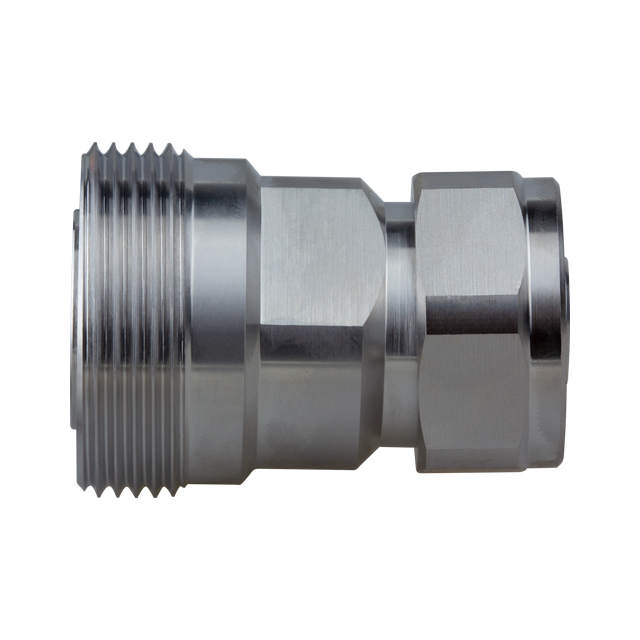

Adapter Coaxial Connector 4.1/9.5 Plug, Male Pin To 7/16 Jack, Female Socket 50 Ohms
