EK204-73

Active

Carling Technologies

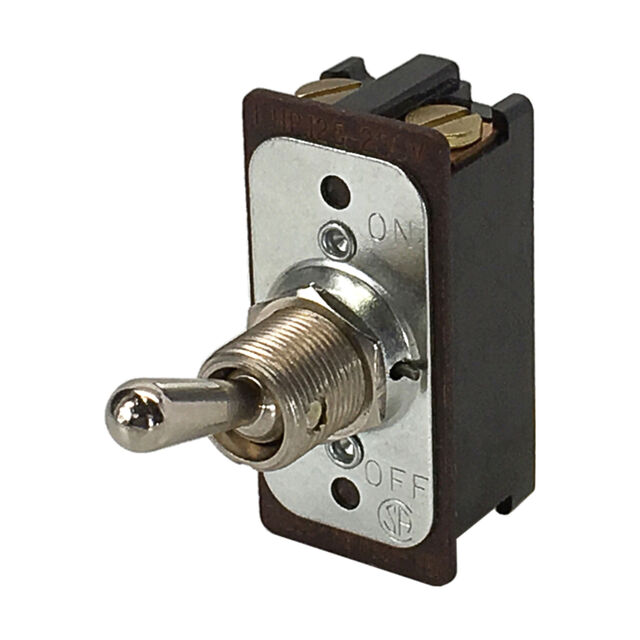

SWITCH TOGGLE DPST 20A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE DPST 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 26.96

General part information

Toggle Switch DPST Panel Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	EK204-73	EK204 Series

Actuator Length [x]	17.44 mm	17.44 - 17.45 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPST	DPST
Current Rating (Amps)	20 A	20 A
Electrical Life	25000 Steps	25000 Steps
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	65.6 °C	65.6 °C
Operating Temperature [Min]	-17.8 °C	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE DPST 20A 125V

Part	Circuit	Voltage Rating - AC	Termination Style	Actuator Material	Actuator Type	Illumination	Panel Cutout Dimensions [diameter]	Bushing Thread	Electrical Life	Switch Function	Actuator Length [x]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
Carling Technologies EK204-73/POLY	DPST	125 V	Screw Terminal	Nylon, Polyamide (PA)	Standard Round	Non-Illuminated	12.7 mm	15/32-32	25000 Steps	On-Off	17.45 mm	20 A	65.6 °C	-17.8 °C
Carling Technologies EK204-73	DPST	125 V	Screw Terminal	Nylon, Polyamide (PA)	Standard Round	Non-Illuminated	12.7 mm	15/32-32	25000 Steps	On-Off	17.44 mm	20 A	65.6 °C	-17.8 °C
Carling Technologies EK204-73/HDW ASSM	DPST	125 V	Screw Terminal	Nylon, Polyamide (PA)	Standard Round	Non-Illuminated	12.7 mm	15/32-32	25000 Steps	On-Off	17.45 mm	20 A	65.6 °C	-17.8 °C
Carling Technologies EK204-72	DPST	125 V	Screw Terminal	Nylon, Polyamide (PA)	Standard Round	Non-Illuminated	12.7 mm	15/32-32	25000 Steps	On-Off	17.45 mm	20 A	65.6 °C	-17.8 °C
Carling Technologies EK204-78	DPST	125 V	Screw Terminal	Nylon, Polyamide (PA)		Non-Illuminated	12.7 mm	15/32-32	25000 Steps	On-Off		20 A	65.6 °C	-17.8 °C
Carling Technologies EK204-73/3HEX	DPST	125 V	Screw Terminal	Nylon, Polyamide (PA)	Standard Round	Non-Illuminated	12.7 mm	15/32-32	25000 Steps	On-Off	17.45 mm	20 A	65.6 °C	-17.8 °C
