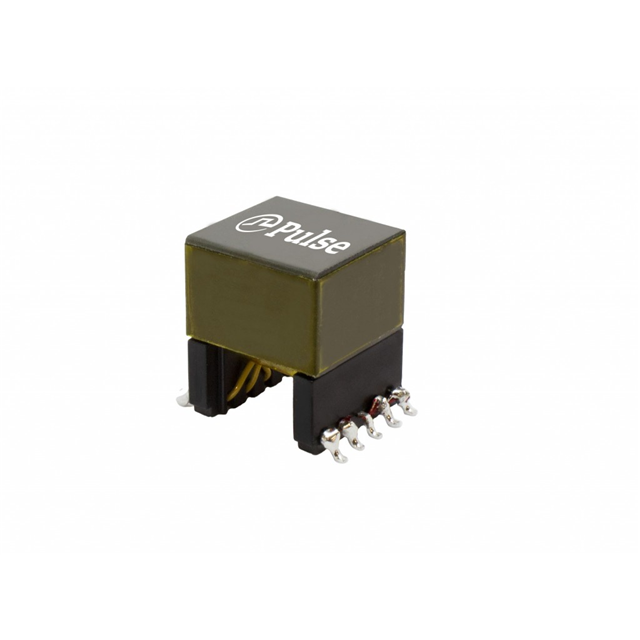

PA5111.003NLT
ActivePulse Electronics
XFMR FLYBACK DC/DC CONV 80UH SMD
PA5111.003NLT
ActivePulse Electronics
XFMR FLYBACK DC/DC CONV 80UH SMD
Description
General part information
PA5111.003NLT
Flyback Converters For For DC/DC Converters SMPS Transformer 3000Vrms Isolation 200kHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PA5111.003NLT |
|---|---|
| Applications | Flyback Converters |
| Footprint Length | 0.689 in |
| Footprint Width | 0.531 in |
| Frequency | 200 kHz |
| Height - Seated (Max) | 16.51 mm |
| Inductance | 80 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.531 in |
| Size / Dimension Width | 0.52 in |
| Style | Wirewound |
| Type | For DC/DC Converters |
| Voltage - Isolation | 3 kV |
| Voltage - Primary (Max) | 75 V |
| Voltage - Primary (Min) | 33 V |
