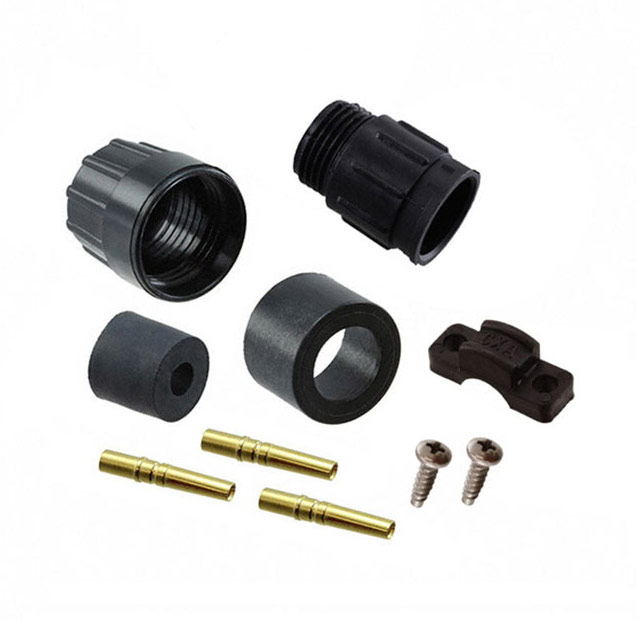

5180-3SG-518
ActiveConxall/Switchcraft
CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5180-3SG-518
ActiveConxall/Switchcraft
CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5180-3SG-518 | 5180-3SG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 6.1 - 7.62 mm |
| Cable Opening | - | 0.27 - 0.32 in |
| Cable Opening | - | 8.13 mm |
| Cable Opening | - | 0.24 - 0.3 in |
| Cable Opening | - | 6.86 mm |
| Cable Opening [Max] [custom] | 0.2 in | 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm | 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm | 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in | 0.18 in |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
5180-3SG Series
CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Contact Material | Color | Shielding | Orientation | Primary Material | Voltage Rating | Fastening Type | Contact Finish - Mating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Ingress Protection | Connector Type | Backshell Material, Plating | Cable Opening [custom] | Cable Opening [custom] | Features | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5180-3SG-515 | Brass | Black | Unshielded | Keyed | Plastic | 600 V | Bayonet Lock | Gold | Free Hanging (In-Line) | -40 °C | 115 °C | Crimp | Weathertight | Receptacle, Female Sockets | Nylon, Polyamide (PA) | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Backshell, Cable Clamp | |||||||||
Conxall/Switchcraft 5180-3SG-318 | Brass | Black | Unshielded | Keyed | Plastic | 600 V | Bayonet Lock | Gold | Free Hanging (In-Line) | -40 °C | 115 °C | Crimp | Weathertight | Receptacle, Female Sockets | Nylon, Polyamide (PA) | Backshell | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 5180-3SG-315 | Brass | Black | Unshielded | Keyed | Plastic | 600 V | Bayonet Lock | Gold | Free Hanging (In-Line) | -40 °C | 115 °C | Crimp | Weathertight | Receptacle, Female Sockets | Nylon, Polyamide (PA) | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Backshell | |||||||||
Conxall/Switchcraft 5180-3SG-518 | Brass | Black | Unshielded | Keyed | Plastic | 600 V | Bayonet Lock | Gold | Free Hanging (In-Line) | -40 °C | 115 °C | Crimp | Weathertight | Receptacle, Female Sockets | Nylon, Polyamide (PA) | Backshell, Cable Clamp | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 5180-3SG-330 | Brass | Black | Unshielded | Keyed | Plastic | 600 V | Bayonet Lock | Gold | Free Hanging (In-Line) | -40 °C | 115 °C | Crimp | Weathertight | Receptacle, Female Sockets | Nylon, Polyamide (PA) | Backshell | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | |||||||
Conxall/Switchcraft 5180-3SG-524 | Brass | Black | Unshielded | Keyed | Plastic | 600 V | Bayonet Lock | Gold | Free Hanging (In-Line) | -40 °C | 115 °C | Crimp | Weathertight | Receptacle, Female Sockets | Nylon, Polyamide (PA) | Backshell, Cable Clamp | 6.1 mm | 0.27 in | 0.24 in | 6.86 mm | |||||||
Conxall/Switchcraft 5180-3SG-530 | Brass | Black | Unshielded | Keyed | Plastic | 600 V | Bayonet Lock | Gold | Free Hanging (In-Line) | -40 °C | 115 °C | Crimp | Weathertight | Receptacle, Female Sockets | Nylon, Polyamide (PA) | Backshell, Cable Clamp | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 10.59 | |
Description
General part information
5180-3SG Series
3 Position Circular Connector Receptacle, Female Sockets Crimp
