1806177

Active

Phoenix Contact

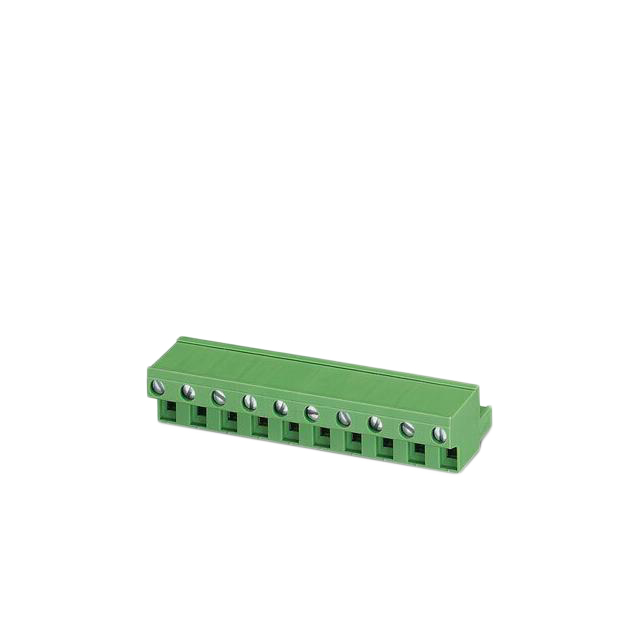

PLUGGABLE TERMINAL BLOCKS 8 POS 7.62MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1806177

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 8 POS 7.62MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 21.61
Sager	N/A	50	$ 24.53

Description

General part information

GMSTB Series

Pluggable Terminal Blocks 7 Pos 7.62mm pitch Through Hole Header

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1806177	GMSTB Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Contact Tail Length	-	3.5 mm
Contact Tail Length	-	0.138 in
Current - IEC	12 A	12 - 16 A
Current - UL	-	18.5 A
Features	-	Mating and Mounting Flange, Retention Latches (Non-Wire Side), Mating Flange
Header Orientation	-	90°, Right Angle
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.591 in	0.339 - 0.689 in
Insulation Height	15 mm	8.61 - 17.5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole
Number of Levels	1	1
Number of Positions	8	2 - 10
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Positions Per Level	8	2 - 10
Screw Size	M3	M3
Termination Style	Screw - Pressure Clip	Screw - Pressure Clip, Solder, Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 Nm
Type	Plug, Female Sockets	Plug, Female Sockets, Header, Male Pins, Shrouded (2 Side), Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	1 kV	1 - 630 kV
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	10 mm	8 - 10 mm

GMSTB Series

Pluggable Terminal Blocks 7 Pos 7.62mm pitch Through Hole Header

Part	Wire Strip Length	Pitch [x]	Pitch [x]	Screw Size	Current - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Termination Style	Voltage - IEC	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Insulation Height	Insulation Height	Contact Mating Finish	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Number of Positions	Voltage - UL	Number of Levels	Material Flammability Rating	Mounting Type	Housing Material	Header Orientation	Contact Tail Length	Contact Tail Length	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Current - UL	Features
Phoenix Contact 1806177	10 mm	0.3 in	7.62 mm	M3	12 A	30 AWG	12 AWG	8	Screw - Pressure Clip	1 kV	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	0.591 in	15 mm	Tin	Green	0.2 mm²	2.5 mm²	Plug, Female Sockets	8	300 V	1	UL94 V-0	Free Hanging (In-Line)	Polyamide (PA), Nylon
Phoenix Contact 1766204		0.3 in	7.62 mm		12 A			10	Solder	630 V					0.339 "	8.61 mm	Tin	Green			Header, Male Pins, Shrouded (2 Side)	10	300 V	1	UL94 V-0	Through Hole	Polyamide (PA), Nylon	90°, Right Angle	3.5 mm	0.138 in
Phoenix Contact 1714294	8 mm	0.3 in	7.62 mm	M3	16 A	30 AWG	12 AWG	4	Screw - Rising Cage Clamp	1 kV	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	0.689 in	17.5 mm	Tin	Green			Plug, Female Sockets	4		1	UL94 V-0	Free Hanging (In-Line)	Polyamide (PA), Nylon				0.2 mm˛	2.5 mm˛	18.5 A
Phoenix Contact 1766178		0.3 in	7.62 mm		12 A			7	Solder	630 V					0.339 "	8.61 mm	Tin	Green			Header, Male Pins, Shrouded (2 Side)	7	300 V	1	UL94 V-0	Through Hole	Polyamide (PA), Nylon	90°, Right Angle	3.5 mm	0.138 in
Phoenix Contact 1710939		0.3 in	7.62 mm		12 A			3	Solder	630 V					0.339 "	8.61 mm	Tin	Green			Header, Male Pins, Shrouded (4 Side)		300 V	1	UL94 V-0	Through Hole	Polyamide (PA), Nylon	90°, Right Angle	3.5 mm	0.138 in				Mating and Mounting Flange
Phoenix Contact 1805987	10 mm	0.3 in	7.62 mm	M3	12 A	30 AWG	12 AWG	2	Screw - Pressure Clip	1 kV	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	0.591 in	15 mm	Tin	Green	0.2 mm²	2.5 mm²	Plug, Female Sockets	2	300 V	1	UL94 V-0	Free Hanging (In-Line)	Polyamide (PA), Nylon							Mating Flange, Retention Latches (Non-Wire Side)
