HD36-18-8SE-059
UnknownTE Connectivity AMP Connectors
PLG,8P,AL,E, CBL CLMP BT, DRAIN,
HD36-18-8SE-059
UnknownTE Connectivity AMP Connectors
PLG,8P,AL,E, CBL CLMP BT, DRAIN,
Description
General part information
HD36-18-8SE-059

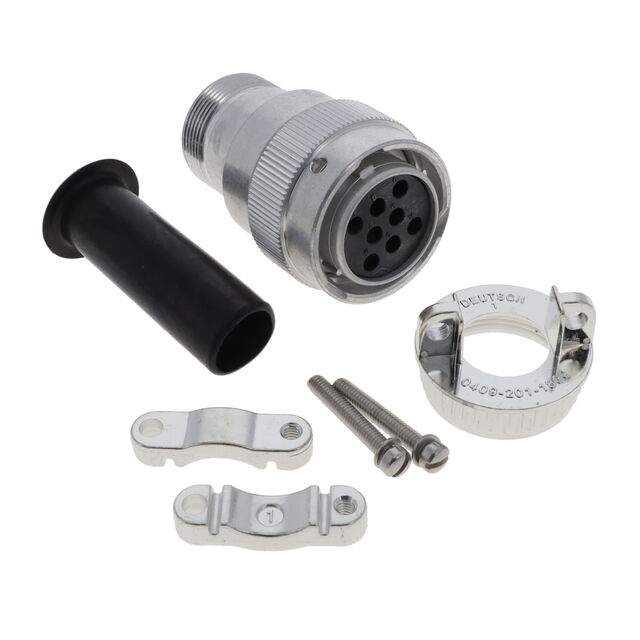

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp
Technical Specifications
Parameters and characteristics for this part
| Specification | HD36-18-8SE-059 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyetherimide, PEI |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 18 mm |
| Shell Size - Insert Width | 8 mm |
| Shielding | Unshielded |
| Type | For Female Sockets |
